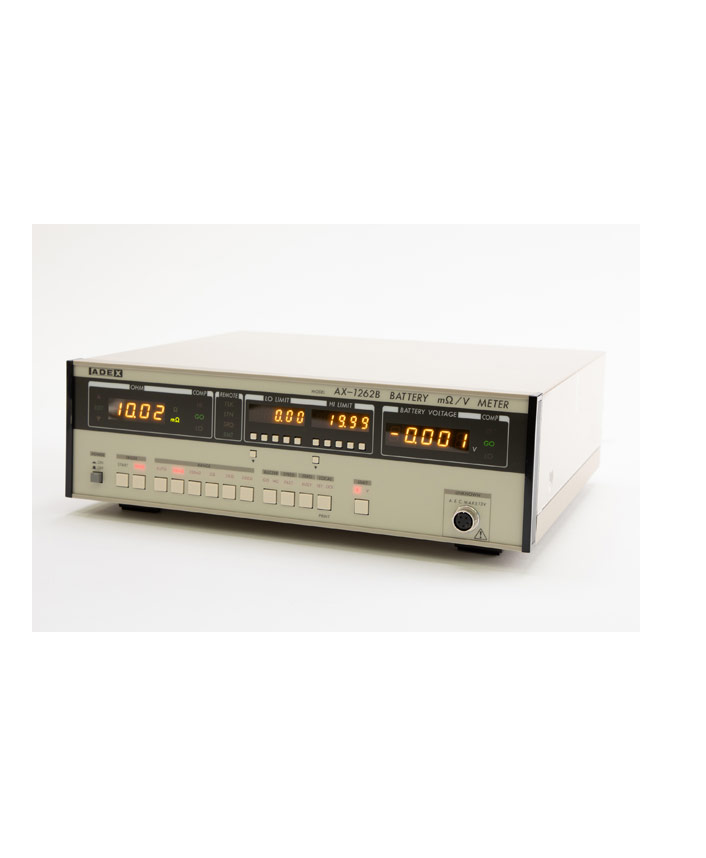

ADEX AX-1262B ແບັດເຕີລີ້ MILLI OHM/V ແມັດ (0.00mΩ ~ 199.9Ω)
Measuring range and Accuracy (at 23℃±5℃)
Voltage measuring range/ Resolution/ Accuracy
0.000V～12.999V/ 1mV/ within ±0.03％rdg±2digit
Range/ Measuring range/ Resolution/ Measuring current
20mΩ/ 0.00mΩ～19.99mΩ/ 10μΩ/ 100mA
200mΩ/ 0.0mΩ～199.9mΩ/ 100μΩ/ 10mA
2Ω/ 0.000Ω～ 1.999Ω/ 1mΩ/ 1mA
20Ω/ 0.00Ω～ 19.99Ω/ 10mΩ/ 100μA
200Ω/ 0.0Ω～ 199.9Ω/ 100mΩ/ 10μA
Accuracy: within
± (0.2％rdg＋50μΩ)
±2digit [Slow]
±3digit [Fast]
Test signal: 1kHz±0.1% sine wave/1V r.m.s. (max.)
Measuring method: 4-terminal measuring method [available to contact check]
Sampling time:
Free running mode : 5 or 15 times/sec.
Remote start mode : about 24msec./110msec.
Measuring response time: Within 20msec. approx.
Measuring terminals max. voltage: DC±25V(In case of A.E.C. : S"OFF")/DC±13V(In case of A.E.C. : S"ON")
Comparator set range: Resistance：3½ Digit (1999) both high and low limit Voltage：4½ Digit (±12.999) both high and low limit
Indication of comparator's comparison result: LED indication LO/GO/HI and buzzer
Control signal:
Remote start signal
Remote hold signal
comparison output [R-LO/R-HI/V-LO/V-HI/GO]：Open-collector output
Contact signal error [CE]：Open-collector output
end of comparison output [EOC]：Open-collector output
Analog output:
Resistance value：Full scale DC10V±0.3％±30mV
Battery voltage：0～±12V±0.1％±10mV
Operation condition [Temp.]: ＋5℃～＋40℃ [Humidity] less than 85％
Power supply: AC100V～240V selectable, 50/60Hz, about 50VA
Outer dimension: about 333(W)×99(H)×300(D)mm (excluding protruding parts such as rubber legs, etc.)
Weight: about 3.5kg
