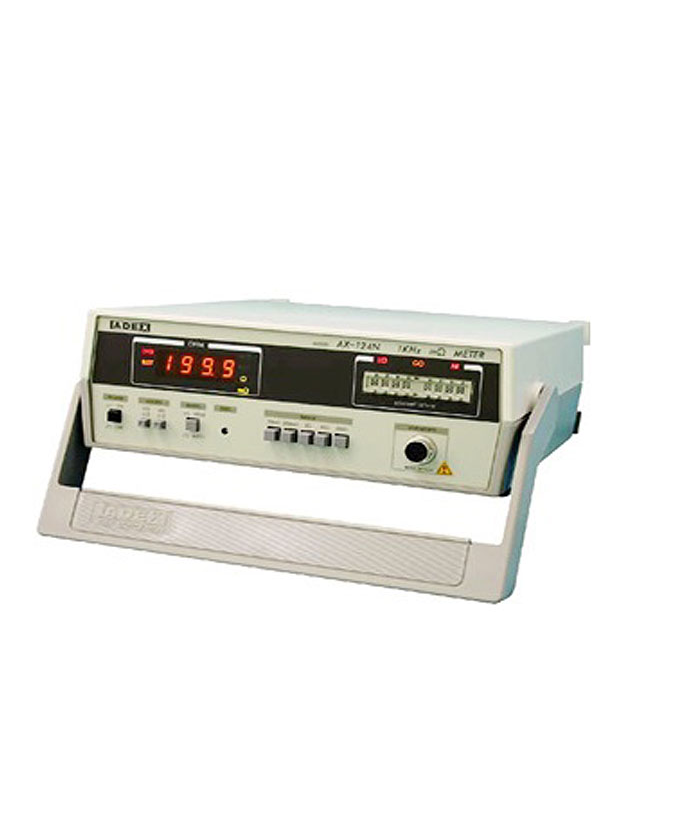

ADEX AX-124N ດິຈິຕອລ milliohm ແມັດ (0Ω ~ 199.9Ω)
ຜູ້ຜະລິດ: ADEX Model: AX-124N - ຕິດຕໍ່ພົວພັນ
Measuring range and Accuracy (at 23*C±5*C)
Range/ Measuring range/ Resolution/ Measuring current/ Accuracy
20mΩ/ 0.00 ～19.99mΩ/ 10μΩ/ 100mA/ within ± (0.3％rdg＋50μΩ＋2digit)
200mΩ/ 0.0 ～199.9mΩ/ 100μΩ/ 10mA/ within ± (0.3％rdg＋50μΩ＋2digit)
2Ω/ 0.000 ～ 1.999Ω/ 1mΩ/ 1mA/ within ± (0.3％rdg＋50μΩ＋2digit)
20Ω/ 0.00 ～ 19.99Ω/ 10mΩ/ 100μA/ within ± (0.3％rdg＋50μΩ＋2digit)
200Ω/ 0.0 ～ 199.9Ω/ 100mΩ/ 10μA/ within ± (0.3％rdg＋50μΩ＋2digit)
Test signal: 1kHz ±5% sine wave/applied voltage less than 20mV
Measuring method: 4-terminal measurement
Sampling time
[Free running mode] 12.5 times/sec
[Remote start mode] 80msec
Measuring response time: about 0.5sec.
Comparator set range: 0000～1999 both for high and low limit
Indication of comparator's comparison result: LED indication LO/GO/HI and buzzer
Control signal
remote start input
comparison output [LO/GO/HI]：open collector：max.50V, 100mA
end of comparison output [EOC]：open collector：max.50V, 100mA
measured value in BCD parallel (fan out 2)
print command (fan out 2)
range (fan out 2)
Power supply: AC100V～240V selectable, 50/60Hz, less than about 15VA
Outer dimension: about 260 (W) ×90 (H) ×250 (D) mm (excluding protruding parts such as rubber legs, etc.)
Weight: about 2.2kg
