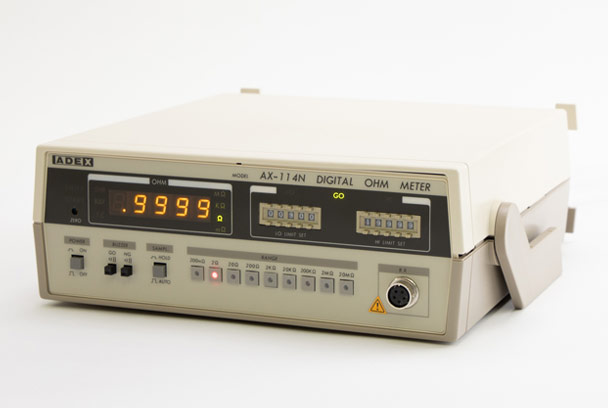

ADEX AX-114N ເຄື່ອງວັດຄວາມຕ້ານທານທີ່ໃຊ້ DC ແບບດີຈີຕອນ (10μΩ~19.999MΩ)
Measuring range and Accuracy (at23℃±5℃)
Range Measuring range Resolution Measuring current Accuracy
200mΩ 10μΩ～199.99mΩ 10μΩ DC 100mA within ±0.05% of rdg ±3digit
2Ω 100μΩ～ 1.9999Ω 100μΩ DC 10mA within ±0.05% of rdg ±3digit
20Ω 1mΩ～ 19.999Ω 1mΩ DC 10mA within ±0.025％ of rdg ±3digit
200Ω 10mΩ～ 199.99Ω 10mΩ DC 5mA within ±0.025％ of rdg ±3digit
2kΩ 100mΩ～ 1.9999kΩ 100mΩ DC 5mA within ±0.025％ of rdg ±3digit
20kΩ 1Ω～ 19.999kΩ 1Ω DC 500μA within ±0.025％ of rdg ±3digit
200kΩ 10Ω～ 199.99kΩ 10Ω DC 50μA within ±0.025％ of rdg ±3digit
2MΩ 100Ω～1.9999MΩ 100Ω DC 5μA within ±0.025％ of rdg ±3digit
20MΩ 1kΩ～19.999MΩ 1kΩ DC 0.5μA within ±0.05％ of rdg ±3digit
Measuring method: 4-terminal measurement
Sampling time [Free running mode]: 10.5 times/sec.
[Remote start mode] 80msec. (Power 50Hz), 66.7msec. (Power 60Hz)
Comparator set range: Both upper and lower limit 4½ digit (19999)
Indication of comparator's comparison result: LED indication LO/GO/HI and buzzer
Control signal
comparison output (LO/GO/HI)：open collector max.80V, 100mA
completion of the measurement signal (EOC)：open collector max.80V, 100mA
measured value in BCD parallel (fan out 2)
print command (fan out 2)
range (fan out 2)
Power supply: AC100V～240V selectable, 50/60Hz, about 15VA
Outer dimension: about 260 (W) ×90 (H) ×250 (D) mm (excluding protruding parts such as rubber legs, etc.)
Weight: about 2.6kg
