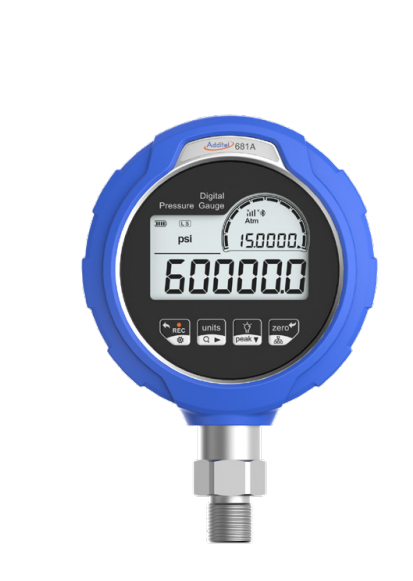

Additel ADT681A-05-GP500-Bar-B2-DL-BP ເຄື່ອງວັດຄວາມດັນດິຈິຕອນ (35 bar, 0.05%, 1/2 BSP male Bottom mount)

ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ

Pressure Range: 35 bar

Accuracy: 0.05%

Connection: 1/2 BSP male, bottom mount

Data Logging: Data logging function

Built-in Barometric Pressure Option: ±55 Pa

Display:

Wide-viewing-angle FSTN segment-code LCD, three-partition design.

White backlight; backlight time: ON, 15 seconds, 30 seconds, 45 seconds, 60 seconds; default is 15 seconds.

5–6 digit display can be switched; character height: 14.8 mm (0.58").

Main display + unit display + fan-shaped section.

Display Rate:

3 readings per second in low-power mode (default setting).

Adjustable from 10 readings per second to 1 reading every 10 seconds.

Environmental:

Compensated Temperature: 14°F to 122°F (-10°C to 50°C).

Operating Temperature: -4°F to 122°F (-20°C to 50°C).

Storage Temperature: -40°F to 167°F (-40°C to 75°C).

Humidity: 5%RH–95%RH, non-condensing.

Power:

Battery: 3 AA alkaline batteries.

Battery Life:

Super Stable Mode [1]: 4,000 hours (3 readings/s, default), 1,000 hours (10 readings/s).

Low Power Mode [2]: 5,000 hours (2 readings/s), 9,000 hours (1 reading/s), 18,000 hours (1 reading/10 s).

Power Auto-Off: 120, 90, 60, 45, 30, or 15-minute auto-off options, or never.

External Power: Power supply through USB (optional).

Datasheet
