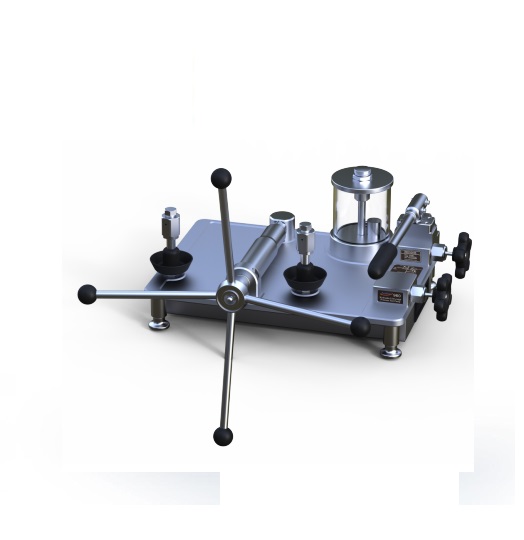

Additel 960 Hydraulic Ultra-High Pressure Test Pump
Media: Diethylhexyl Sebacate
Reservoir capacity: 420 ml
Pressure Range: 0 to 60,000psi (4,200 bar) gauge pressure
Material:
Ram/adapters: SS
Body: SS, aluminum, Copper
Seals: Buna-N, PTFE, Copper Alloy, Aluminum Alloy
Connection
Test Gauge Connection: Autoclave F-250-C female
Reference Gauge Connection: Autoclave F-250-C
female
Hand-tight connectors for both test gauge and reference gauge.
1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female
Dimensions:
Height: 6.9"(175 mm)
Base: 17.9" (455 mm) x 15.0" (380 mm)
Weight: 33.1 lb (15 kg)
Piston volume: 1.5 ml
Low pressure piston: 30 ml
High pressure piston: 2.5 ml
Accessories included
Diethylhexyl Sebacate,1 bottle (250 ml)
Manual: 1 pc
Carrying case (960-X-SET models only)
