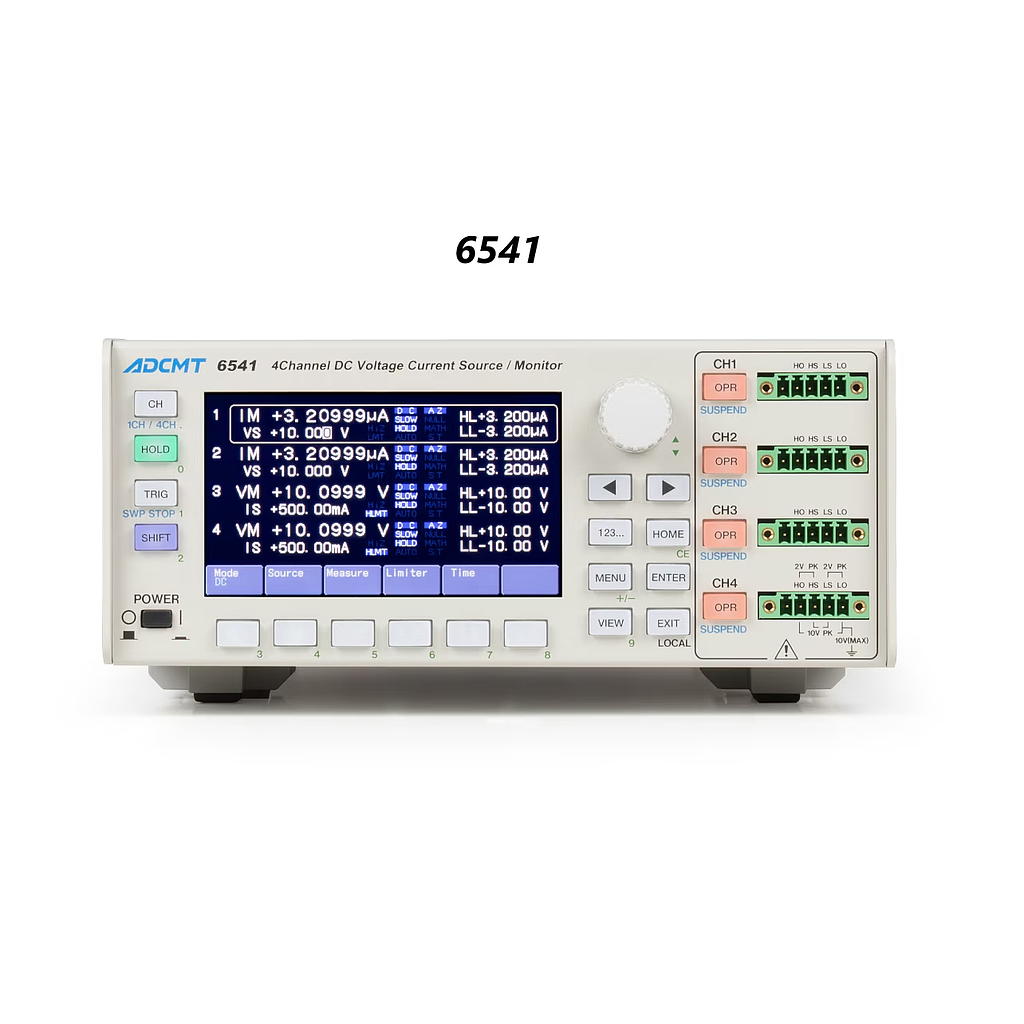

ADCMT 6541 4-Channel DC Voltage Current Source/Monitor (4CH; ±10 V / 500 mA)
Specifications
Number of digits for generation: 4½
Output method: Bipolar
Maximum output voltage: ±10 V / 500 mA (1 A for 4 channels)
Minimum voltage resolution: 100 μV
Maximum output current: ±500 mA / 10 V (1 A for 4 channels)
Minimum current resulution: 100 pA
Number of digits for measurement: 5½
Accuracy (typical range): 0.0002
Minimum measurement voltage resolution: 10 μV
Minimum measurement current resulution: 10 pA
Maximum measurement resistance / Minimum resolution: 5 GΩ/20 μΩ
Pulse application / Measurement: Available
Minimum pulse width: 50 μs
Display: 4.3 inch color LCD display
Interface: Single USB port ; GPIB port (option); LAN port (option)
Supplied Accessories: :
Power cable (JIS 2 m): 1
Output connector: 4
Output connector cover: 4
Cable tie: 4
