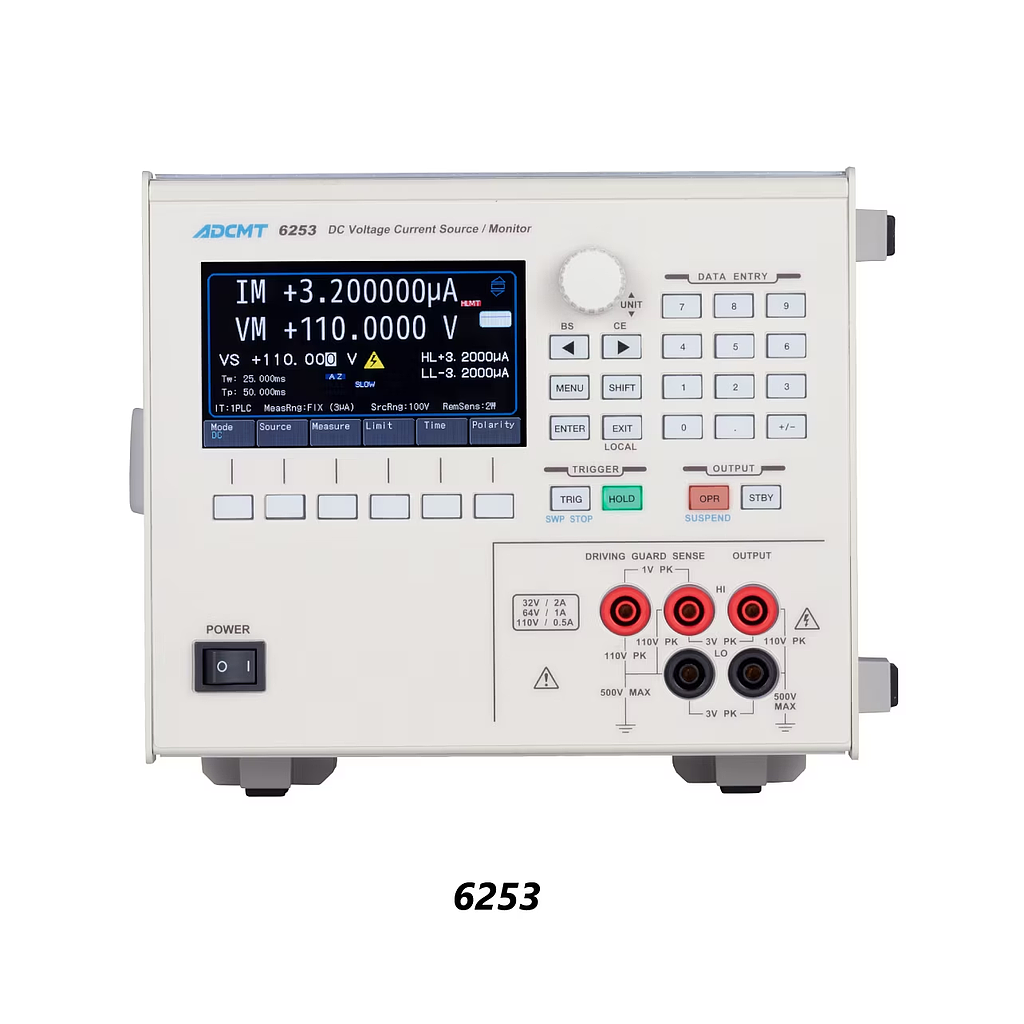

ADCMT 6253 ຕົວຊີ້ວັດແຫຼ່ງທີ່ມາຂອງແຮງດັນ DC (±110 V/0.5 A ; ±64V/1A)
Specifications
Number of digits for generation: 5½
Output method: Bipolar
Maximum output voltage: ±110 V/0.5 A ; ±64 V/1 A
Minimum voltage resolution: 5 μV
Maximum output current: ±2 A/32 V
Minimum current resolution: 50 pA
Number of digits for measurement: 6½桁
Accuracy (typical range): 0.0002
Minimum measurement voltage resolution: 100 nV
Minimum measurement current resolution: 1 pA
Maximum measurement resistance / Minimum resolution: 550 GΩ/0.05 μΩ
Pulse application / Measurement: Available
Minimum pulse width: 25 μs
Interface: USB, GPIB, LAN (option), RS232 (option)
Supplied Accessories:
Power cable (JIS 2 m): 1
Input and output cable (safety plug) 6253 only: 1
Input and output cable (safety plug, large current) 6254 only: 1
Banana tip adapter (for A01044): 1
Alligator clip adapter (for A01044) 6253 only: 1
Output connector (plug): 1
Output connector (plug) cover : 1
Cable tie: 1
