Increase bearing lifetime
Basic vibrodiagnostics measurement
Monitoring and control of lubrication process
Stethoscope function - "listening of machine noise"
Values in traffic light colours tells you when to add the grease
Input: 1x ICP® powered accelerometer with 100 mV/g sensitivity
Output: 1x AC signal 8 Ω / 0,5 W for external headphones (signal listening)
Measurements:
Acceleration RMS 500 - 16 000 Hz [g]
Acceleration Peak 500 - 16 000 Hz [g]
Velocity RMS 10 - 1 000 Hz [mm/s, ips]
Velocity Peak 10 - 1 000 Hz [mm/s, ips]
Acceleration frequency bands 500-1 500Hz, 1 500-5 000Hz, 5 000 - 16 000 Hz [g]
Memory: 4 MB
Data storing: Off-Route, Route with DDS software (free download)
Interface: USB 3.0, 2.0 compatible
Software: Free version of DDS software (limited database size)
Display: Colour graphic OLED display 128x128 pixels, diagonal 1.5“ (38 mm)
Power: 2 x 1,5V (AA alkaline batteries) or 2 x 1,2V (NiMH AA rechargeable batteries)
Dimensions: 150 x 60 x 35 mm
Weight: 330 g including batteries (without cable, sensor and magnet)

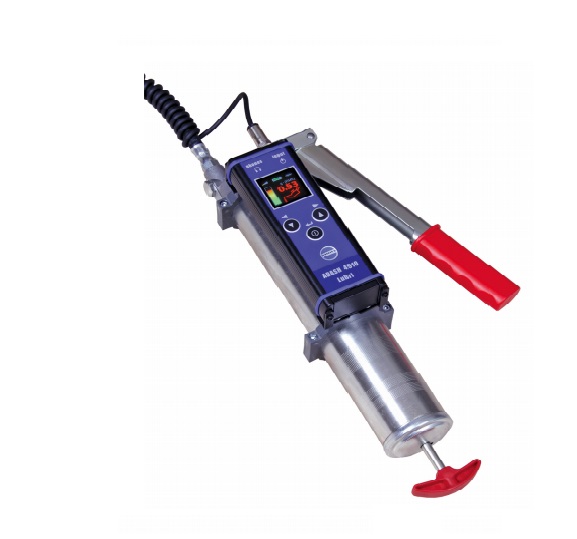

The A4910 Lubri is a maintenance tool used for monitoring and control of the lubrication process. The A4910 Lubri measures the actual bearing lubrication status and informs the operator when the lubrication state is optimal. Application of the A4910 Lubri extends the bearing lifetime and saves lubricants. Headphones can be connected to listen to the bearing condition. The A4910 Lubri is simple to operate and also enables you to perform basic measurements and diagnosis of bearing condition. The A4910 Lubri can store the data and perform route measurements as well.
