Input: 1 x ICP® powered accelerometer
Input range: 60 g PEAK with standard 100 mV/g sensor
(e.g. 600 g PEAK for 10 mV/g sensor, the sensitivity is editable in the unit)
Measurements: Velocity RMS: 10 - 1 000 Hz [mm/s, ips]
Velocity PEAK: 10 - 1 000 Hz [mm/s, ips]
Acceleration RMS: 500 - 16 000 Hz [g]
Acceleration Peak: 500 - 16 000 Hz [g]
Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples *
Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines
Acceleration time: 1 - 16 000 Hz [g], 2048 samples*
Acceleration spectrum: 1 - 16 000 Hz [g], 800 lines*
Acceleration Demod-Envelope RMS: 500 - 16 000 Hz [g]
Acceleration Demod-Envelope Peak: 500 - 16 000 Hz [g]*
Acceleration Demod-Envelope time: 500 - 16 000 Hz [g], 2048 samples
Acceleration Demod-Envelope spectrum: 500 - 16 000 Hz [g], 800 lines,
range 400 Hz*
Displacement RMS: 2 - 100 Hz [µm, mil]
Displacement 0-Peak: 2 - 100 Hz [µm, mil]
Displacement Peak-Peak: 2 - 100 Hz [µm, mil]
Temperature non-contact measurement: 0 - 380°C (32 - 716°F)
Other functions: LED stroboscope (0.17-300 Hz, 10 - 18 000 RPM)
LED torch
Vibration stethoscope
Memory: 4 MB for data
900 measurements of 800 line spectra or 2048 sample time signals
may be stored
Data storing: Off-Route
Route with DDS software for Vibrio M (free download)
Interface: USB 2.0 compatible
Software: Free version of DDS software (limited database size)
Display: Colour graphic OLED display 128x128 pixels, diagonal 1.5“ (38 mm)
Output: 1 x AC signal 8 Ω / 0,5 W for external headphones (signal listening)
Power: 2 x AA 1.5V batteries (alkaline, NiMH, Lithium - 8 hours of operation)
Temperature: Operating: -5°C to 55°C
Dimensions: 150 x 60 x 35 mm
Weight: 330 g including batteries (without cable, sensor and magnet)
540 g including batteries, cable, sensor and magnet
Accessories: vibration sensor, coiled cable to connect vibration sensor, magnetic base
for vibration sensor, headphones with 3.5 mm jack, USB cable, measuring
tip for manual pressure on the sensor, transport case, USB flsh disc with
the manual
Fly (chi tiết tính năng A4900 - Vibrio M)

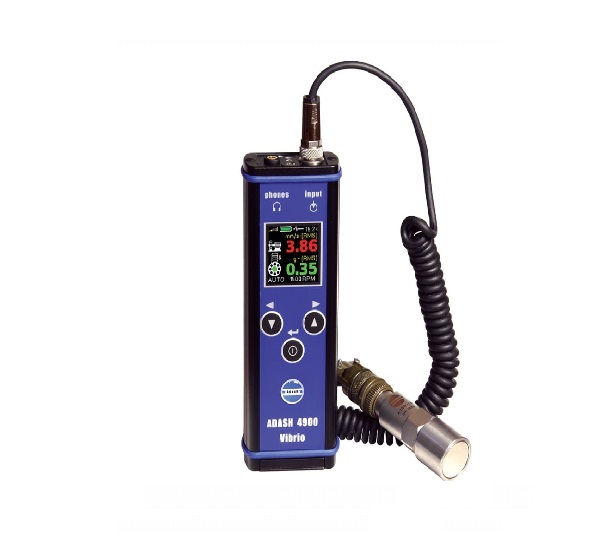

The A4900 Vibrio M is a vibration meter, data collector and analyzer. It is supplied as a complete system including quality piezoelectric sensor, magnet and coiled cable for industrial use. The A4900 - Vibrio M instrument allows you to perform all basic vibro-diagnostics measurements. It is equipped with 4 MB of memory for data storage. Data memory allows you to perform off-route and route measurements. (The instrument without memory feature is still available for lower price.) The professional software DDS for Vibrio M can be downloaded from the Adash website free of charge. Adash expert system for automatic machine fault detection is included.
