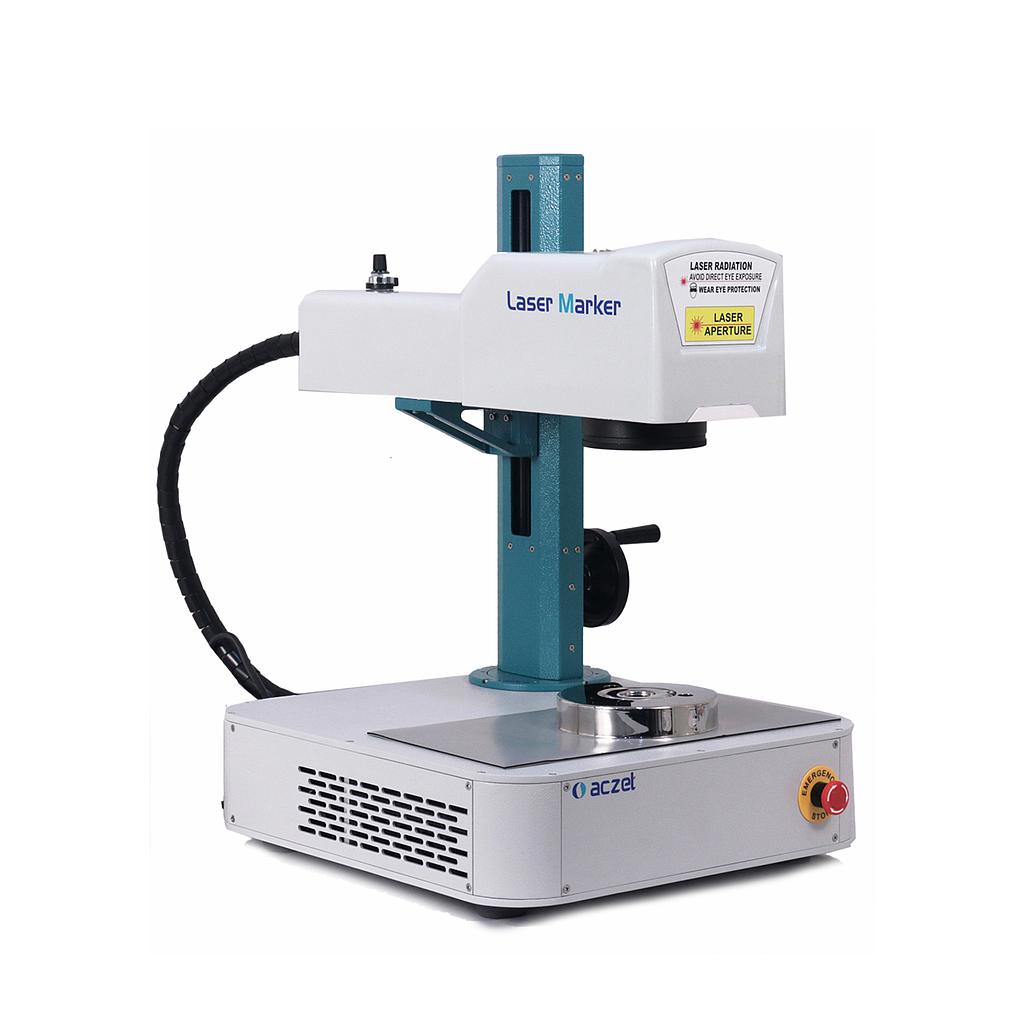

Aczet LM 20 ເຄື່ອງໝາຍ Fiber Laser (16.5 - 18.5 kW)

Laser Source: Pulsed Powerful Fiber Laser

Laser Power: 20 W

Pick Power: 16.5 - 18.5 kW

Laser wavelength: 1064 ± 1 nm

Beam Quality M2: < 1.4

Pulse Repetition Rate: 20 Hz - 100KHz

Marking Area (mm): 100 x 100

Working Life Of Laser:  Greater than 50,000 hours

Marking Speed: < 15000 mm/sec

Laser Frequency: 20 - 100 kHz

Cooling System: Air Cooling

Axis: Auto Z Axis

Minimum Width: 0.03 mm

Minimum Character: 0.3 mm

Repeatability: 0.003 mm

Power Consumption (W): 800 W

Power Supply: 220 V AC. 50 Hz Singler Phase

Dimension (LxWxH) mm: 450 x 340 x 520

Net Weight (Kg): 16 kg

Packing Dimension (LxWxH): 650 x 450 x 380
