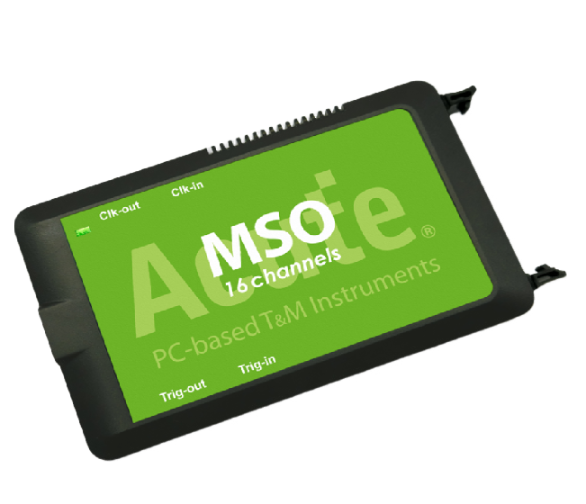

Acute MSO2116B oscilloscope ສັນຍານປະສົມ (16 CH; 40 MHz; 4Gb)

DSO Spec.

Power source: USB bus-power (+5V)

Static power consumption: 0.9W

Max power consumption: <6W

≧12 bits Sampling [Record length]: 200MHz

Input channels: 16

Bandwidth: 40 MHz

Resolution: 12 bits

LA Spec.

Power Source: USB bus-power (+5V)

Static Power Consumption: <6W

Max Power Consumption: <6W

Hardware Interface: USB 3.0

Timing Analysis (Asynchronous，Max. Sample Rate): 2 GHz

State Clock Rate (Synchronous，External Clock): 200 MHz

Storage: Conventional Timing, Transitional Timing

Channels: 16

Total Memory: 4Gb

Timing Analysis: Available Chs (Conventional / Transitional Timing) - Memory per Ch

2GHz Timing [Available Chs] - Memory per Ch: [8/7] - 512Mb

1GHz Timing [Available Chs] - Memory per Ch: [16/14] - 256Mb

500MHz Timing [Available Chs] - Memory per Ch: [16/16] - 256Mb

250MHz Timing [Available Chs] - Memory per Ch: [16/16] - 256Mb

Channel to channel skew: < 1ns

Input channels: N/A

Input impedance: 1MΩ//2pF

Max. (Non-destructive): over ±42V DC & AC

Input operation: ±20V / ±10V (Standard / High Resolution)

Input sensitivity: 200MHz (1Vpp)

Threshold group: 2 (CH0~7 & CKI, CH8~15)

Threshold range: ±20V

Threshold resolution: 50mV

Threshold accuracy: ±100mV + 5%*Vth

Trigger resolution: 500ps

Trigger types: Channel, Pattern, Single / Multi Level, Width, Time-out, Setup/Hold Timing Violation, External, Manual

Protocol Trigger:

BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, LPC, MDIO, Mini/Micro LED, MIPI I3C 1.1.1, MIPI RFFE 3, MIPI SPMI 2, Modbus, PMBus, Profibus, SENT, SMBus, SPI, SVI2, UART (RS232), USB PD 3, USB1.1

Protocol Analyzer:

BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MDIO, MIPI I3C 1.1.1, MIPI RFFE 3, Modbus, PMBus, Profibus, PWM, SMBus, SPI, UART (RS232), USB PD 3, USB1.1
