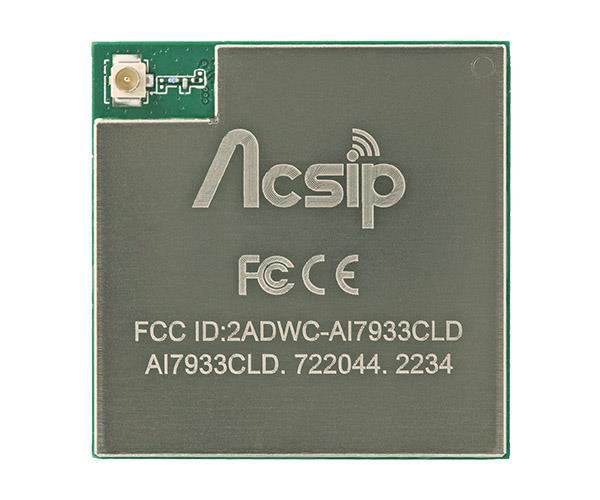

AcSiP AI7933CLD ໂມດູນ Multiprotocol AI7933CLD - WIFI6+DSP Dual Band 2.4/5GHz M33 SoC Module

Core: ARM Cortex M33

Frequency: 300 MHz

Dimensions: 32 mm x 32 mm x 2.7 mm

Memory Size: 16 MB

Interface Type: ADC, GPIO, I2C, I2S, IR, PWM, SDIO, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Number of Channels: 13 Channel

Supply Voltage - Max: 3.63 V

Supply Voltage - Min: 2.97 V

Operating Supply Voltage: 2.97 V to 3.63 V

Protocol - WiFi - 802.11: 802.11 a/b/g/n/ac/ax

Supply Current Receiving: 58 mA, 37 mA

Supply Current Transmitting: 328 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.2
