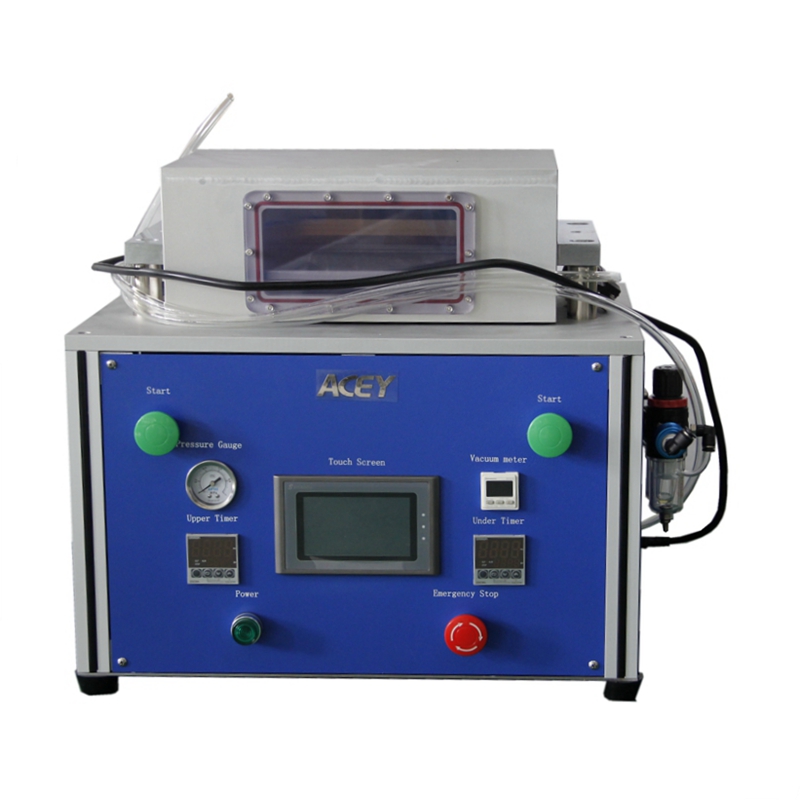

PLC touch screen automatic control system
Cavity material: Aluminum alloy, corrosion-resistant and rigid structure
Vacuum level: adjustable up to -95 kPa (vacuum pump to be provided by buyer)
Head temperature: room temperature ~ 250°C, adjustable
Temperature control accuracy: ±2°C
Heat sealing pressure: 0–7 kg/cm², adjustable
Heat sealing time: 0–99 s, adjustable
Edge sealing width: 5 ± 0.4 mm (customizable)
Sealing length: 200 mm
Applicable battery size: 200 mm (length) × 160 mm (width, including air bag area)
Sealing thickness range: 60–300 μm
Sealing thickness accuracy: difference between any two points < 15 μm
Gas consumption: about 0.2 L compressed gas per cycle
Pneumatic working speed: ≥180 cycles/hour
Power supply: 220V / 50Hz
Heating power: 300 W heating tube, total heating consumption about 0.6 kW
Dimensions:
Working part: 470 × 485 × 435 mm
Control box: 420 × 325 × 225 mm
Equipment weight: 55 kg
1. The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products;
2. The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;
3. The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately.
Ensure the parallelism requirements of the product after edge sealing;
4. Through the perspective window, you can observe the changes in the cavity while working.
5. The cover cavity is driven by an air cylinder and guided by the rotating guide sleeve, which can move up and down flexibly, and the guiding is accurate to ensure the product tightness requirements.
6. It can be applied to batteries of different specifications, and the adjustment is simple and convenient.
7. The main machine and the control box are separated design, so that the machine can work in the glove box or on the assembly line.
8. Easy operation, beautiful appearance, small size and light weight.
