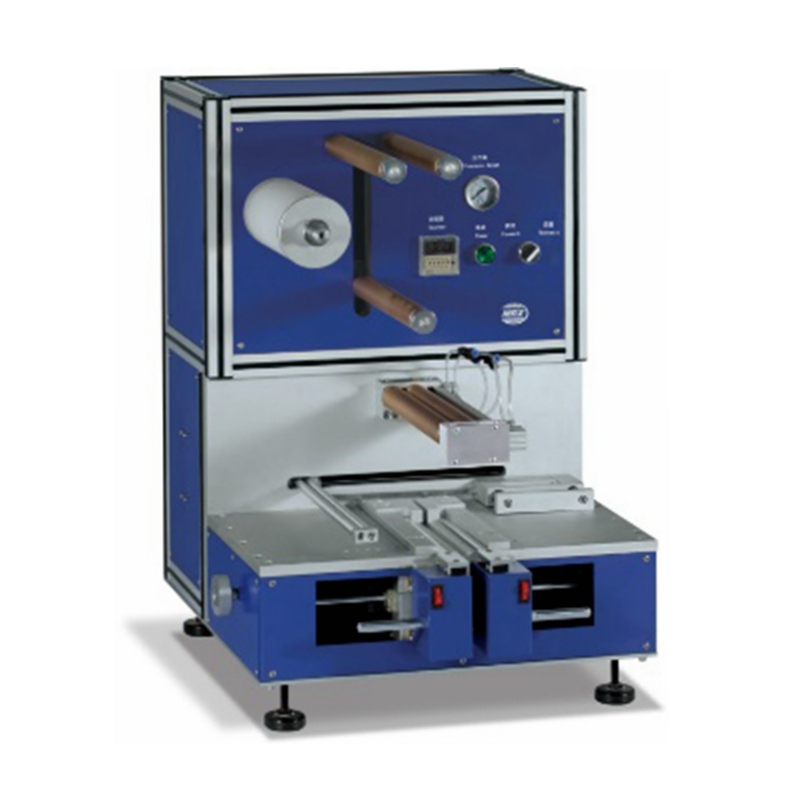

Lamination method: Z-shaped lamination
Diaphragm material roll: Rolled diaphragm, 3-inch core, diameter φ200 mm
Applicable pole piece specifications: Length (20–200) mm, width (20–200) mm, thickness within 16 mm
Swing roller travel stroke: 300 mm
Power supply: AC 220V / 50Hz
Power: 200 W
Air pressure source: 0.4–0.7 MPa
Equipment size: L650 × W400 × H700 mm
Control box size: L200 × W300 × H380 mm
Weight: 30 kg
1. The adjustment, operation and maintenance of the machine are simple and easy.
2. Applicable to a wide range of cell stack sizes.
3. High working efficiency, with digital display counter.
4. Adopt foot switch to control cylinder movement.
5. The machine is small in size, exquisite and beautiful in appearance.
