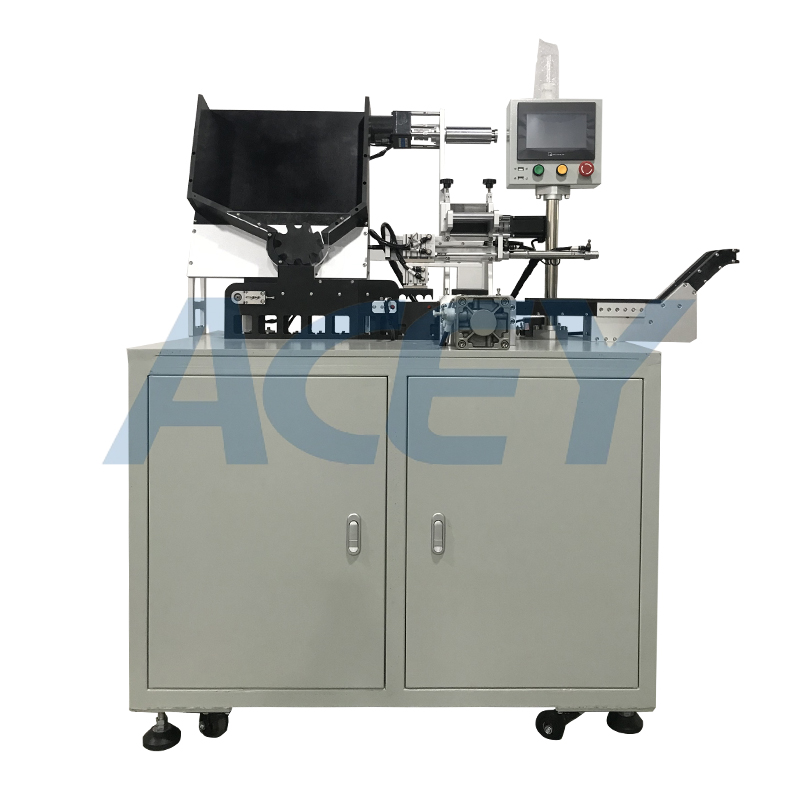

Sticker machine
Voltage Supply: Single-phase ~220V, 50Hz
Rated Power: 2KW
Surface Pad Material: Highland barley paper or PVC material
Material Specification Requirements: Maximum diameter of barley paper roll is 350mm; inner diameter of paper roll core is 72–75mm
Battery Type: 18650 battery cell, positive or negative pole automatically pasted with highland barley paper pad or PVC material
Feeding Method: Insert battery cell hopper, 400 pcs each time, available for 2 separate inserting units
Pneumatic Pressure: 0.4–0.8MPa
Cushioning Power: Electric or pneumatic
Control Device: 7.5-inch touch screen, PLC programmer and servo motor
Barley Paper Roll Width: 100mm
Speed: 4000–4500 pcs/hour, 4 pcs per punch
Dimensions: L1000mm × W710mm × H1500mm
Machine Weight: 200Kg
Knife Mold: Slow-moving wire processing method, high precision; knife mold coated once every 5000 cycles to remove adhesive residue
Sorting Machine:
Equipment Power Supply: Single-phase ~220V±10% / 50Hz±10%, power <300W
Battery Types: 18650 (other sizes available)
Receiving Channels: 10 sorting & matching group channels, 1 unqualified product channel, arbitrary sorting values can be set for each channel
Test Parameters: AC internal resistance, DC voltage
Internal Resistance Test: Test range 80mΩ, accuracy ±0.5%rdg, display resolution 0.01mΩ
Voltage Test: Test range 8V, accuracy ±0.015%rdg, display resolution 0.01mV
Sorting Speed: 6000 pcs/hour
Unwinding Channel: Can store 400 batteries
Display Result: 5.7-inch LCD screen + PC synchronous display + industrial computer
Weight: <300Kg
Features
1. The equipment has a compact structure design, beautiful appearance.
2. The equipment is equipped with universal movable casters, which makes it easy to move and transport the
