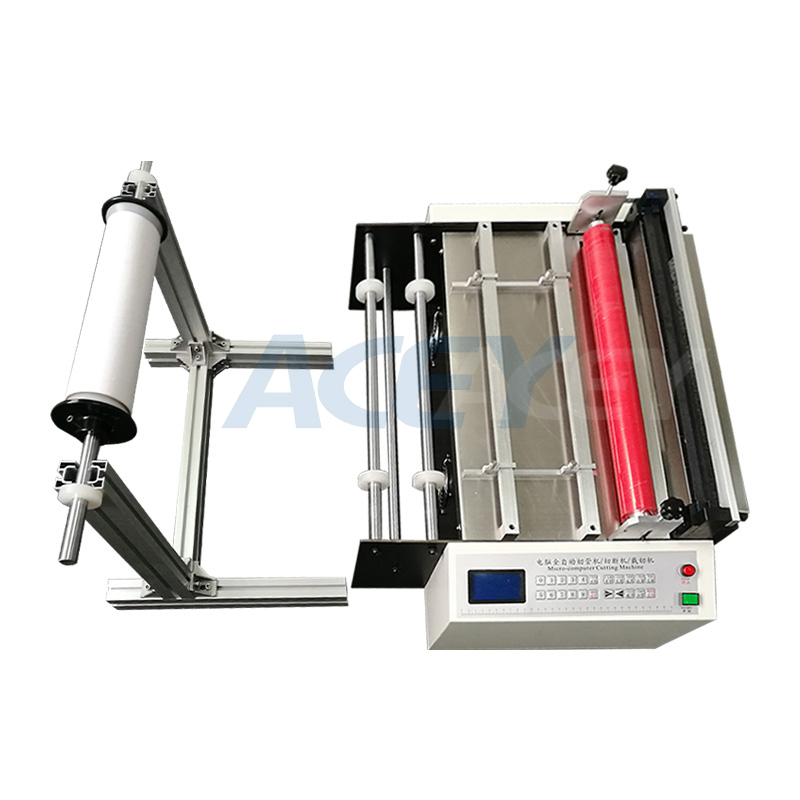

Power Supply: 220V, 50/60Hz
Cutting Speed: 34 m/min
Cutting Width: 0.1 – 410 mm (Effective: 400 mm)
Cutting Length: 0.1 – 9999.9 mm
Machine Weight: 55 kg
Dimensions: 590 × 680 × 390 mm
Blade Material: SKD-11
Bearing: Imported SOO6Z
Panel Material: Stainless Steel
Roller Material: Polyurethane (Hardness: 60)
Display: LCD Screen (128 × 64)
Cutting Motor: 120W
Feeding Motor: Stepper Motor (86 × 96)
Features
Microcomputer numerical control system with digital display
Freely adjustable cutting length, quantity, and feeding speed
Adjustable roller feeding mechanism with automatic pressure regulation and lifting on both sides
Pin-type feeding system effectively prevents material scratching
High precision cutting with minimal material loss
Ergonomic design for easy operation and reduced operator fatigue
Stable performance with high automation level
Quick material loading and efficient production workflow
Applications
PVC / PET film cutting
Heat shrink sleeve processing
Roll and strip material cutting
Wire, cable, and insulation sleeve cutting
Lithium battery pack outer wrapping materials
