Cutter length: 300mm
Cutting width: 2～10mm margin can be adjusted
Cutter life: 10 million times/grinding
Speed: Air pressure 600 times/hour
Power: AC220V/50Hz, 100W
Air compressed air source: 0.5MPa～0.7MPa
Dimensions: L325 × W200 × H350mm
Equipment weight: 45Kg

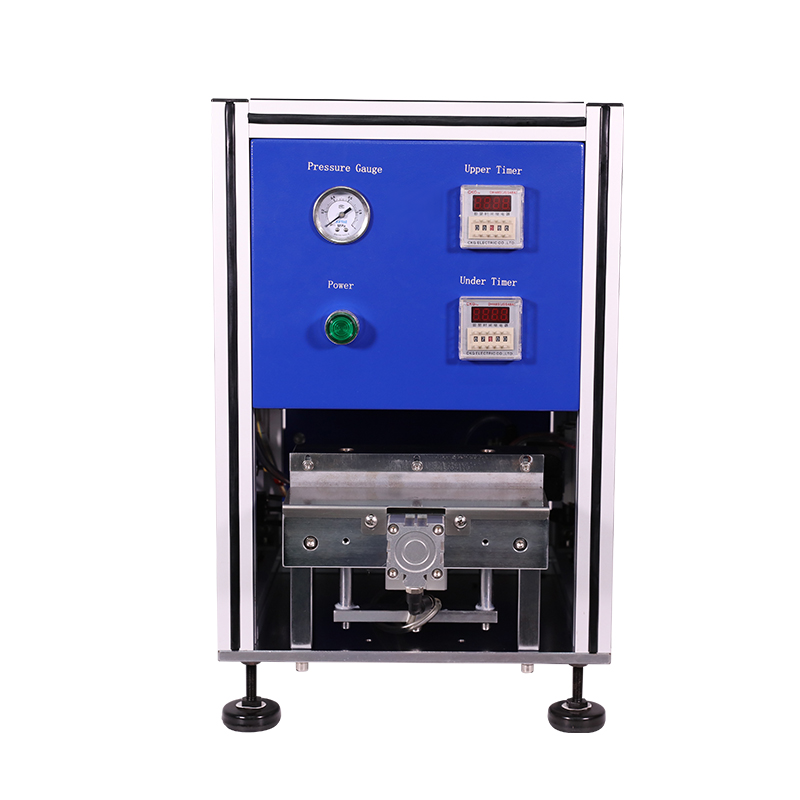

1. Shangyin linear slide rail group is used for guiding, with high guiding precision to ensure zero clearance between upper and lower cutters and long service life.
2. The upper and lower cutters are made of high-speed steel, with sharp blades.
3. Built-in pressure gauge, can observe and accurately control the size of trimming pressure.
4. The cylinder controls the cutter to trim the battery edge, which is easy to be automated, and the trimming width can be adjusted.
5. The trimming air pressure and speed can be set and adjusted.
6. Set the product positioning tray to facilitate the positioning and placement of the battery.
7. Adopt foot pedal operation switch, which is reliable, convenient and fast.
8. The frame is assembled with profiles and baking varnish sealing plates, the equipment structure is simple, compact, and the appearance is exquisite and beautiful.
