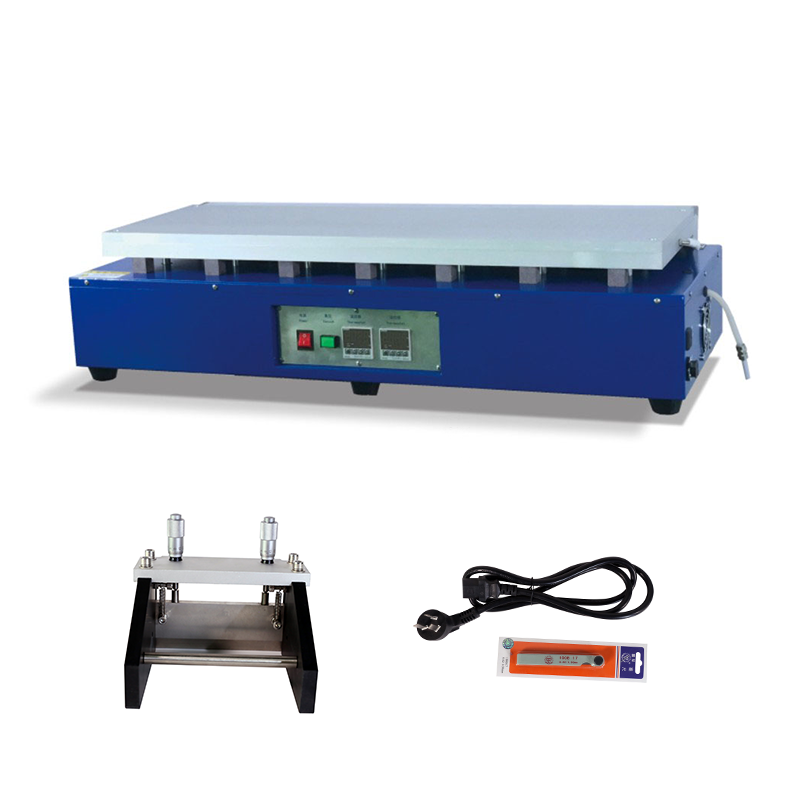

Coating method: Flat coating, standard MRX-TM100 film maker (can be enlarged), optional scraper, wire rod and other gauges (manual scraping)
The coating width is adjustable from 6.4-100mm, the coating stroke is about 250mm, and the stroke is steplessly set and adjusted on the touch screen
Coating drive: Motor drive, coating speed is steplessly set and adjusted on the touch screen
Coating speed: 0～120mm/sec (such as lithium iron phosphate slurry)
Vacuum plate: Aluminum plate with vacuum
Vacuum plate size: L365mm × W200mm × H32mm
Scraper adjustable range: 0～6mm adjustable
Accuracy: ±3μm, optional 1μm dial indicator display
Heating drying system: Room temperature ~ 150℃, digital display temperature controller, accuracy ±1℃
Includes 1 built-in oil-free vacuum pump
Power supply: 220V/50Hz
Weight: 50KG
Dimensions: L505mm × W355mm × H325mm
1. Using large area uniform heating to ensure high precision and uniform temperature in the cavity.
2. Flat coating, motor-driven scraper coating, stable and adjustable coating speed.
3. The coating film speed is adjustable. The vacuum aluminum pan can quickly place or remove copper foil.aluminum foil, etc., built-in vacuum pump or connected to an external vacuum source, and the substrate is adsorbed without deformation.
4. Standard film dispenser, high coating precision, coating Adjustable cloth thickness.
5. Can be used in the glove box, easy to operate and small in size, which can save space.
6. PLC. Touch screen control for easy parameter setting.
