Punching size: Optional Ф3mm～Ф24mm according to customer's specification
Punching pressure≥300Kg:
The stroke of the final axis: ≥25mm
Flushable material: 0.005~0.5mm thick battery material sheet
Overall dimensions (length X width X height) (mm): L125×W145×H245mm
Can pass freely in the glove box with a diameter of Φ210mm or more:
Weight: 10Kg
With tool M5 sheet hand 1:
Receiving box: Anti-static, ABS material, the remaining material is discharged

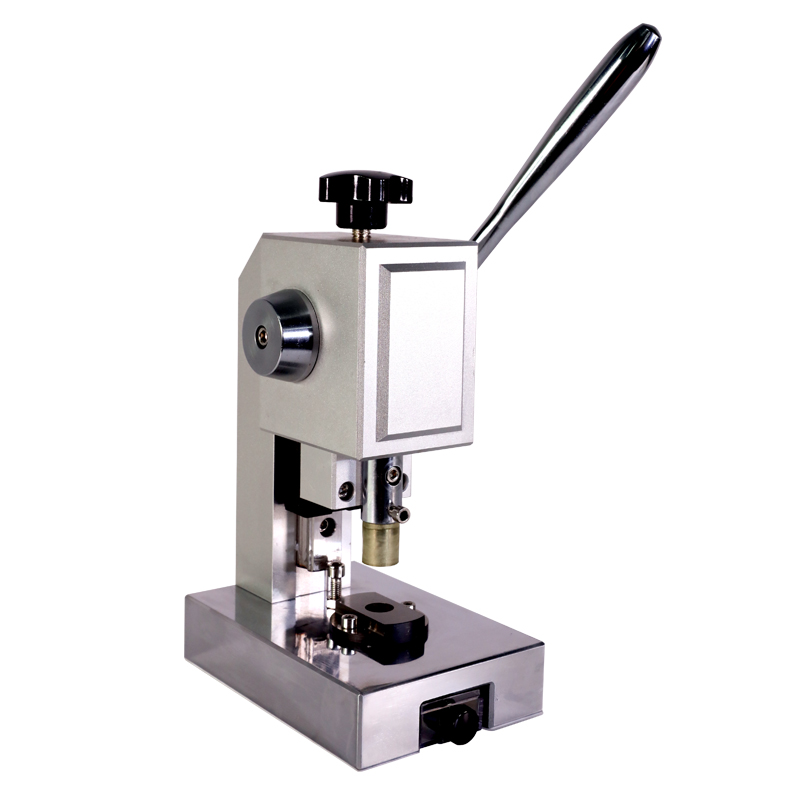

1. The upper die is guided by high-precision slide rails, with high punching accuracy, without burrs, burrs, and indentations.
2. It can punch various battery materials with a thickness of 0.005～0.5mm.
3. Small size, convenient operation, flexible and quick to use, and can be passed through freely in the glove box over Φ210mm in diameter.
4. The appearance is exquisite, beautiful and concise, easy to clean and maintain, with small size and other advantages.
5. The body is made of aluminum alloy corrosion-resistant material, never rusty and beautiful.
6. The body is made of aluminum alloy, rust-proof and beautiful
