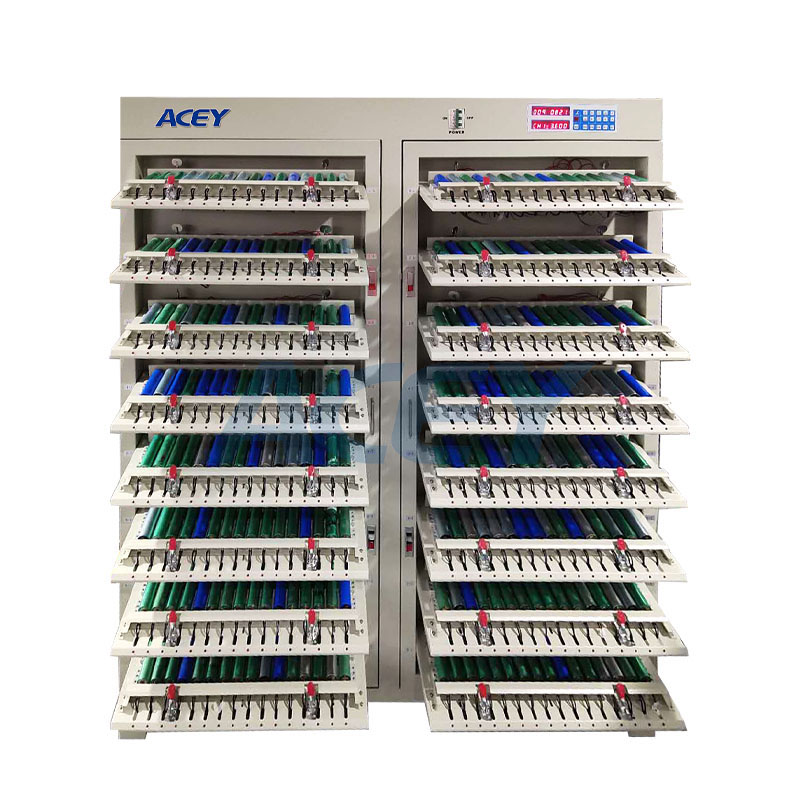

Number of Device Channels: 512 Channels
Size (W × D × H): 1620 × 859.1 × 1840mm
Clamp Form: Cylindrical four-wire fixture
Device Color: Dark grey
Clamp Center Distance: 40mm / 35mm
Supported Battery Height: Adjustable within 10-100mm range
Working Power Supply: Three-phase five-wire system AC380V ±10%, 50Hz
Working Power Dissipation: ≤27KW
Working Environment: Temperature 0-40℃, relative humidity ≤80%
Heat Dissipation Method: Natural air intake and upward exhaust
Voltage Testing Range: 0-5V, 1mV resolution
Battery Voltage Range: Charge 0-4.5V / Discharge 4.5-2V
Constant Voltage Range: 2.5V-4.5V
Voltage Accuracy: ±(1‰ reading +1‰ full scale)
Current Range: 60mA-6A, Resolution: 1mA
Current Accuracy: ±(1‰ reading +1‰ full scale)
Control Mode: Computer-connected equipment operation, whole machine control
Communication Mode: RS485, baud rate 57,600
Process Setting: Maximum 32 work steps and 256 cycles
Charging Mode: Constant current, constant voltage
Charging Cutoff Condition: Voltage, current, time, capacity
Discharge Mode: Constant current
Discharge Cut-off Condition: Voltage, time, capacity
Protection Function: Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc.
Time Range: 0-30,000 minutes
Time Accuracy: ≤±1‰
Sampling Inspection Period: ≤8s
Minimum Data Recording Frequency: ≤8s
Battery Grading: By capacity, time, discharge platform, etc.
Data Processing: Data, graphs, and loop diagrams
System Features
Single point independence, each battery has its own independent constant current and constant voltage source, stable and impact-free.
Equipment accuracy is 0.1%, with high stability.
Powerful software and user-friendly human-machine interface.
Four-wire test interface ensures high measurement accuracy.
Modular design concept, easy to maintain.
