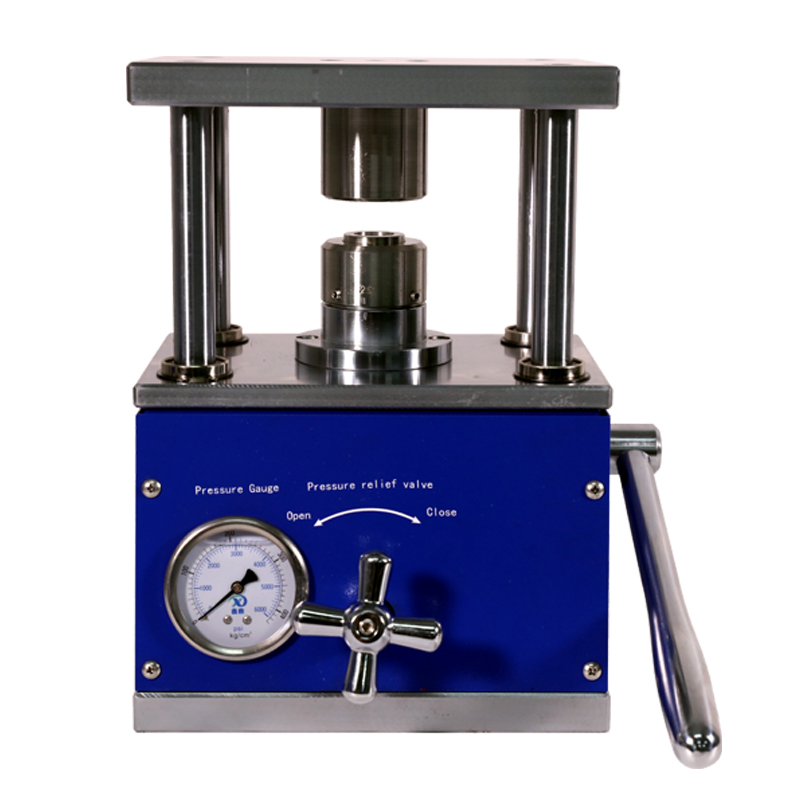

Operating force of hand crank: <5 kg
Standard button battery packaging pressure: about 80～100 kg/cm²; the machine is adjusted before leaving the factory. If higher pressure is required (pressure 200 kg/cm² ≈ 8 tons), please consult the manufacturer; can be adjusted later
Mold material: imported from Japan
The mold is limited by a high-precision positioning ring to control the height of the battery packaging, in case the packaging pressure is too large and unstable, which may cause damage to the battery sealing
It has the function of preventing short circuit of battery sealing
Structural material: high-strength chromium steel, surface will never rust after environmental protection plating and spraying
Dimensions: 225mm × 180mm × 335mm
Weight: 30kg
1. The lower mold is limited by a high-precision positioning ring to control the height of the battery packaging, so as to avoid excessive and unstable packaging pressure, which may cause damage to the sealing cup.
2. The inner ring of the upper mold sealing cup is equipped with a screw spring centering mechanism to ensure that in case the battery is stuck and cannot be removed during sealing, the button battery can be forced out by twisting the top screw.
3. Built-in safety overflow oil valve, the pressure can be adjusted according to needs, and the upper pressure limit can be set to prevent damage caused by excessive pressure caused by misoperation, ensuring the safety of the machine.
4. Built-in pressure gauge can observe and accurately control the size of the sealing pressure.
5. Using hydraulic drive, the pressure can reach 8T, the battery seal has no vibration and no leakage.
6. Specially designed hydraulic structure, labor-saving operation.
7. Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.
8. Small size, easy to operate, can be placed in a glove box for operation.
9. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc.
