Ambient Temperature: -30ºC to 50ºC
Humidity: Below 90%
Air Source Pressure: 0.4～0.6 MPa (pneumatic type only)
Power Supply Voltage: 220V or 380V - 50Hz/60Hz
Load Capacity: ≤200kg/m²
Grounding Type: Direct Grounding
Site Requirements: Free from pollution and strong electromagnetic interference
Installation Environment: Flat, vibration-free, and shock-free
Equipment Noise: ≤80dB
Equipment Dimensions (L × W × H): L900mm × W650mm × H1220mm
Equipment Weight: Approx. 60kg
Equipment Color: Computer White (customizable upon request)
Total Power: ≤1.5KW

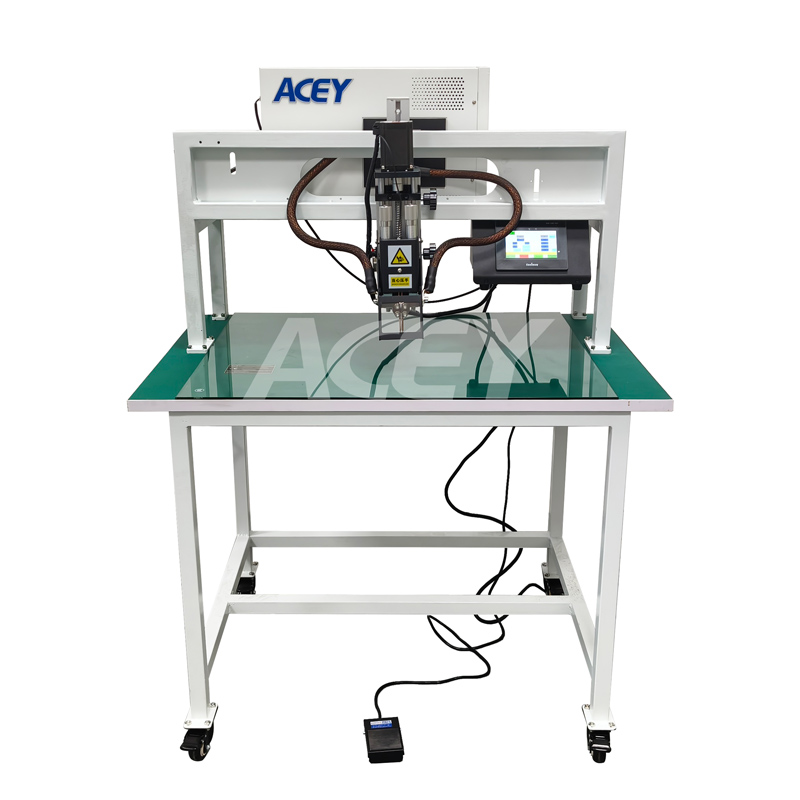

Features
Adopting an industrial-grade modular intelligent control platform.
Applicable battery types: Cylindrical lithium cells, such as 18650 21700 26650 32650 32700 32140 33140.
Welding materials: nickel-plated steel, pure nickel, copper, and other metal materials.
Welding control method: Foot pedal switch.
Features: Weld spot tracking, and detection/recording/alarm functions for sparking, false welding, and missed welds.
Optional welding heads: Pneumatic welding head or electric welding head.
Welding power supply: Transistor welder with 8000A output current.
Welding pressure: The welding needle pressure is stable, reliable, and easy to adjust.
Cooling method: Forced air cooling.
