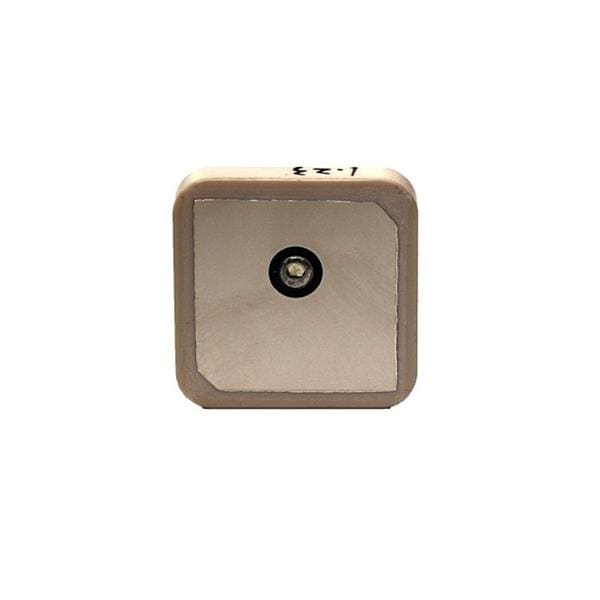

Abracon APRA2504G3Z ເຄື່ອງຮັບສະສົມສະຕິກ 1561/1575/1602MHZ ເຄຣມິກ Patc

Gain: 2.4 dBi, 3.4 dBi, 4.2 dBi

VSWR: 1.8

Style: Ceramic

Width: 25.1 mm

Height: 4 mm

Length: 25.1 mm

Impedance: 50 Ohms

Application: Automotive, Navigation, Logistics, Geofencing, Remote Monitoring, Surveying, Mapping Systems

Polarization: RHCP

Qualification: AEC-Q200

Mounting Style: PCB Mount

Number of Bands: 3 Band

Center Frequency: 1.561098 GHz, 1.57542 GHz, 1.602 GHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 1.607 GHz

Minimum Frequency: 1.559052 GHz

Termination Style: Pin

Protocol - Sub GHz: IoT

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
