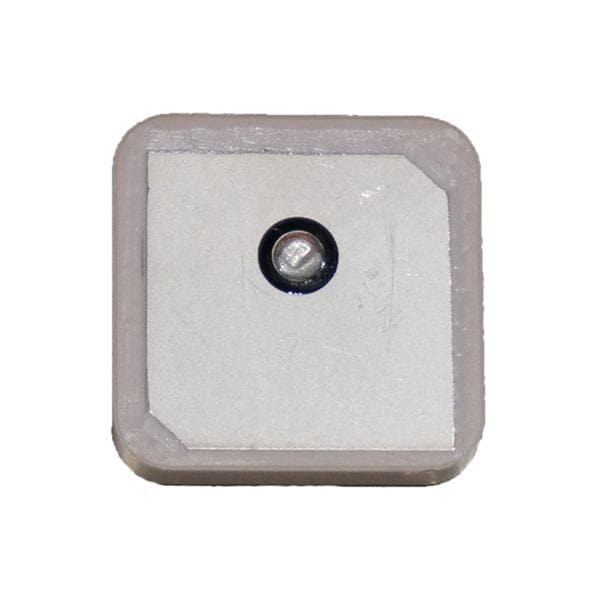

Abracon APRA2504F00Z ເຄື່ອງຮັບສັນຍາລົດຍນະຄົມ GPS+IRIDIUM Ceramic Patch AEC-Q

Gain: 3.5 dBi, 4.5 dBi

VSWR: 2

Width: 25.1 mm

Height: 4 mm

Length: 25.1 mm

Impedance: 50 Ohms

Application: Automotive, Broadband Cellular, GPS/Iridium, IoT, M2M, Networking, Telecommunications

Polarization: RHCP

Qualification: AEC-Q200

Mounting Style: PCB Mount

Electrical Type: Patch

Number of Bands: 2 Band

Center Frequency: 1575.42 MHz, 1610 MHz to 1625 MHz

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 1.625 GHz

Minimum Frequency: 1.574397 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: GPS

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
