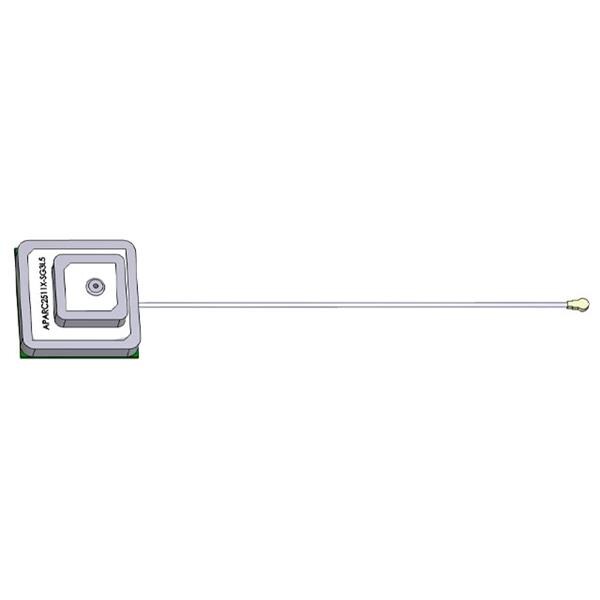

Abracon APARC2511X-SG3L5 ເຄື່ອງຮັບສະຫນາມແອັກຕິບ ພາຍໃນ/ຕິດຕັ້ງໃນ ຕູ້ເຊື່ອມຕໍ່ພາດຊ໌ແອັກຕິບ ຕິດຕັ້ງ IPEX (F)

Gain: - 2 dBi, 0 dBi, 2 dBi

VSWR: 1.5, 1.95, 2.74, 6.12

Style: Stacked

Width: 25 mm

Height: 13 mm

Length: 25 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: M2M, Remote Technology/Monitoring, Geofencing, Surveying, Mapping Systems, Logistics

Cable Length: 100 mm

Polarization: RHCP

Mounting Style: PCB Mount

Number of Bands: 4 Band

Mechanical Style: Patch

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.176 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT

Antenna Connector Type: IPEX Female

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
