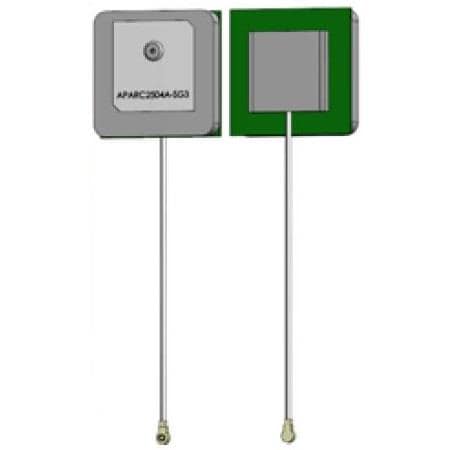

Abracon APARC2504A-SG3 ເຄື່ອງຮັບສະຫນາມແອັກຕິບ ພາກພາດຕິດຕັ້ງພາຍໃນ/ຝັງໃສ່ ຕິດຕັ້ງຂໍ້ມູນການຕໍ່ສອງ

Gain: 21.5 dB, 22.5 dB, 21 dB

VSWR: 2

Style: Ceramic

Width: 25 mm

Height: 0.5 mm

Length: 25 mm

Impedance: 50 Ohms

Cable Type: 69 mm RF1.13

Application: M2M, Remote Technology/Monitoring, Geofencing, Surveying, Mapping Systems, Logistics

Unit Weight: 18.315 g

Polarization: RHCP

Mounting Style: PCB Mount

Number of Bands: 3 Band

Center Frequency: 1.561098 GHz, 1.57542 GHz

Mechanical Style: Patch

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.574 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT

Antenna Connector Type: IPEX

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
