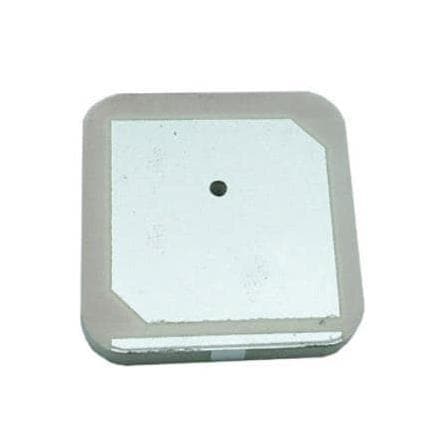

Abracon APAKN1304-S2450-T ເຄື່ອງຮັບສະຫນອງປະສິດທິພາບພາຍໃນ/ຕິດຕັ້ງພາຍໃນ Passive Patch Surface Mount

Gain: 5 dB

Style: Ceramic

Width: 13 mm

Height: 4 mm

Length: 13 mm

Bandwidth: 40 MHz

Impedance: 50 Ohms

Application: Weareables, Mobile, Portable

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 2.448 GHz

Mechanical Style: Patch

Maximum Frequency: 2.484 GHz

Minimum Frequency: 2.412 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: ISM

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
