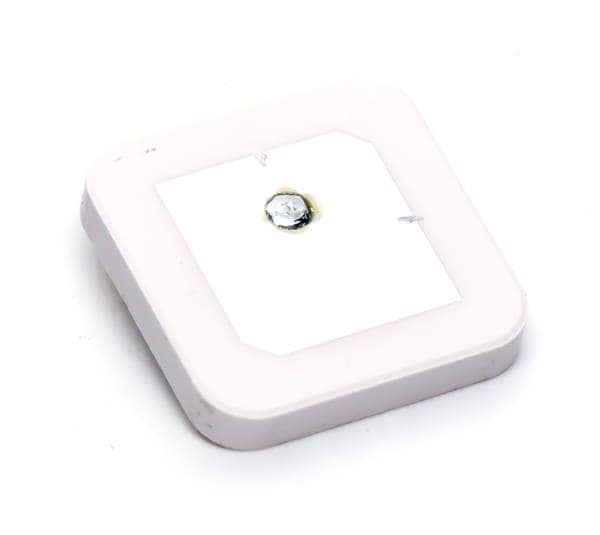

Abracon APAGM2525-S2450 ແນວຮັບສະສົມສະຫນາມພາຍໃນ/ຝັງ Passive Patch Through Hole Pin

Gain: 4.5 dB

VSWR: 1.5

Style: Ceramic

Width: 25 mm

Height: 4 mm

Length: 25 mm

Bandwidth: 2.4 GHz

Impedance: 50 Ohms

Application: Mobile Applications, Drones, Robotics, VR/AR Applications, Industrial Controls

Polarization: RHCP

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Patch

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Pin

Protocol - Sub GHz: ISM

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
