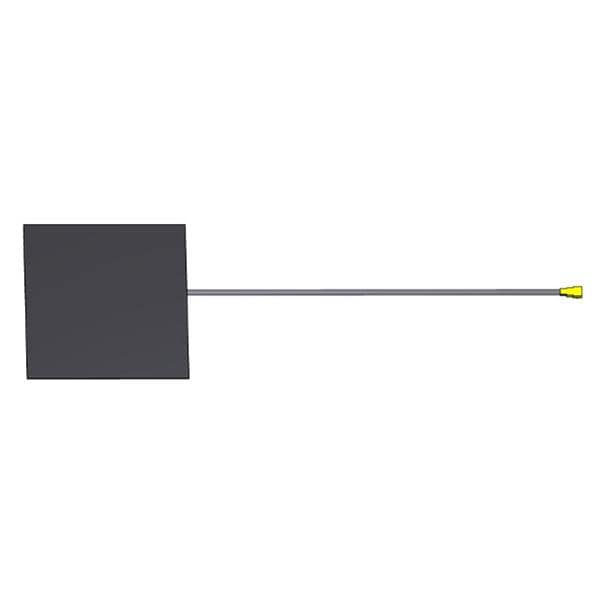

Abracon AFAG3030-SG3 ເຄື່ອງຮັບສະຫນອງປະສົບ 30 x 30 mm ອະນເທນາ GNSS ປະສົບຍືນດ້ວຍການເຊື່ອມຕໍ່ IPEX1/UFL ແລະ ຄວາມຍາວສາຍ 100mm

Gain: 3 dBi

VSWR: 2.5

Style: T-Panel Flex

Width: 30 mm

Height: 0.2 mm

Length: 30 mm

Bandwidth: 70 MHz

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: M2M, Geofencing, Remote Monitoring, Logistics, Tracking, Surveying, Mapping Stystems

Cable Length: 100 mm

Polarization: Vertical

Power Rating: 3 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 1 Band

Center Frequency: 1.585 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 1.62 GHz

Minimum Frequency: 1.55 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT

Antenna Connector Type: IPEX

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
