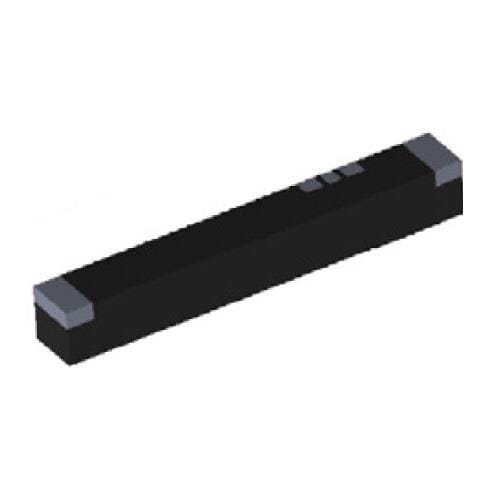

Abracon ACAR3705-S698 ອະນຕີນາພາສິບ ພາຍໃນ/ຝັງໃນ ຊິບຕິດຜິວພື້ນ ການບຸນດ້ວຍບົດຫລັກ

Gain: 1.07 dBi, 4.03 dBi, 3.76 dBi

VSWR: 4.5:1

Style: Ceramic

Width: 5 mm

Height: 5 mm

Length: 37 mm

Impedance: 50 Ohms

Application: Telecommunications, Networking, Consumer Electronics, Wireless Modules, Mobile Devices, Broadband Celluar Connectivity, Video and Surveillance, M2M

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 3 Band

Center Frequency: 830 MHz, 1.94 GHz, 2.6 GHz

Mechanical Style: Chip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 700 MHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM
