Connectors: 1 x Rx
Realtime bandwidth: 80/120 MHz Rx
Sweep speed: 300/440 GHz/s
DANL: -165 dBm/Hz
SSD recording storage: 1 TB (expandable)
Specifications (Analyzer)
Frequency range: 10 MHz to 6 GHz (opt. 8 GHz)
Real-time bandwidth Rx: 80 MHz / 120 MHz / 160 MHz (opt. 245 MHz I/Q rate) (depends on MIL version)
Real-time bandwidth Tx: 120 MHz I/Q gapless streaming
POI (with 245 MHz option): 97 ns (FFT-based), 10ns (direct I/Q-based)
Max. power Rx: +23 dBm
Max. power Tx: +20 dBm
DANL(internal pre-amp on): Typ. -170 dBm/Hz
Amplitude accuracy (typ.): Typ. +/- 0.5 dB (compensated by FIR filter)
Frequency reference accuracy: 0.5 ppm (5 ppb via OCXO option)
RBW (resolution bandwidth): 62 mHz to 200 MHz
Measurement units: Over 20 (e.g. dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm²)
Detector: Min, Max, AVG, Peak, QPeak
Attenuator range: 50 dB / 70 dB (0.5 dB steps)
Traces: Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK)
Measurement modes: True IQ or power/frequency data
ADC: Dual 2GSPS 16 Bit
DAC: 2GSPS 14-Bit (16-Bit via oversampling)

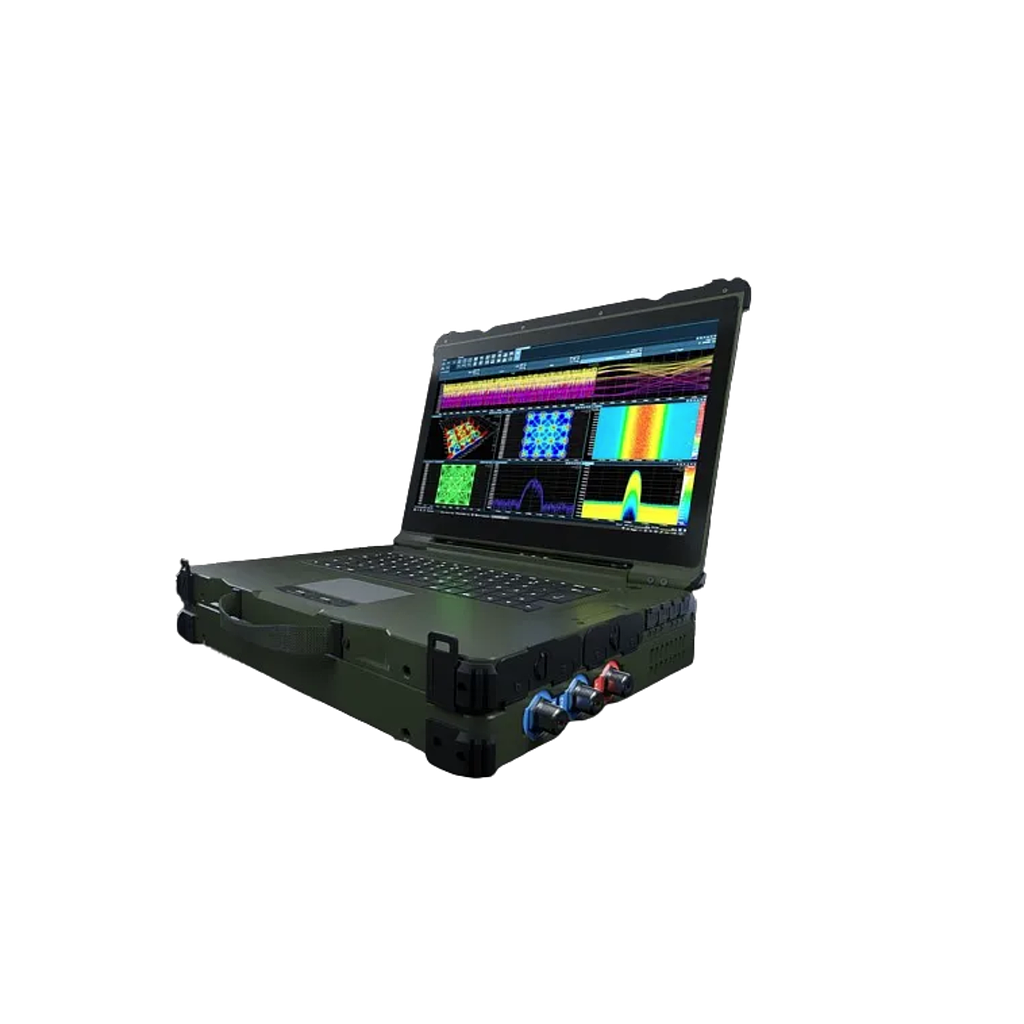

Specifications (Laptop)
RAM: 64 GB RAM
Display: 15.6“ Full HD 1920 x 1080, sunlight readable (300 cd/m²), anti-glare with LED backlight
Battery: 2x Li-ion polymer 10.8V/6900 mAh batteries; Standard power supply 230 V, opt. vehicle adapter
Operating temperature: -20° to +60° C
Storage temperature: -40° to +70° C
Dimensions: 392 x 300 x 42.5 mm (with rubber corners)
Weight: 9.5 kg
Relative humidity:95% relative humidity, non-condensing
Power supply AC input: 100 - 240 V, 50 - 60 Hz
DC output: 19 V, 10.5 A max.
