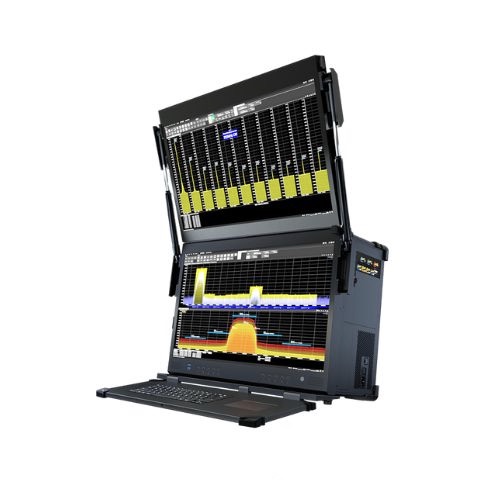

AARONIA SPECTRAN V6 CC 2000CA-6 ຕົວວິເຄາະສະເປກເວລາຈິງ (730 GHz/s; 10 MHz - 6 GHz)
Real-time bandwidth Rx: 160 MHz RTBW
Sweep: 730 GHz/s
DANL: -165 dBm/Hz
IQ POI: 15 ns
Network: 10 GbE
Processor: 24 Core
RAM: 32 GB
Data Storage: - / 4 TB
Specifications (Analyzer)
Frequency range: 10 MHz to 6 GHz (opt. 8 GHz, 1 Hz to 26 GHz in development)
POI: 97 ns (FFT-based), 10 ns (direct I/Q-based)
Max. power Rx: +23 dBm
Max. power Tx: +20 dBm
DANL (internal pre-amp on): Typ. -170 dBm/Hz
Amplitude accuracy (typ.): Typ. +/- 0.5 dB (compensated by FIR filter)
Frequency reference accuracy: 0.5 ppm (5 ppb via OCXO option)
RBW (resolution bw): 62 mHz to 57 MHz
Measurement units: Over 20 (e.g. dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm²)
Detector: Min, Max, AVG, Peak, QPeak
Attenuator range: 50 dB / 70 dB (0.5 dB steps)
Traces: Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK)
Measurement modes: True IQ and/or Power/Frequency data
External Frequency Reference Input: Typ. 10MHz, 3.5VRMS into 50 Ohm (SMB-connector)
FPGA: Up to 4 x XC7A200T-2
Specifications (PC)
CPU: Intel® Core™ i9-13900K (24 Core)
RAM: up to 256 GB DDR5
SSD: 1 GB NVMe (OS), 4 TB (recording storage); optional expandable (up to 24 GB)
Operation System: Windows 10 PRO
Display: 2x 4K (2x 3840 x 2160 px) sunlight readable, anti reflection tempered strengthen glass
Graphics Card: Nvidia Geforce 3060 RTX
Keypad: 104-key industrial keyboard with integrated numeric keypad and touchpad
Connectors: 1x USB-C Gen 2x2 (20 Gbit/s)
1x USB-C Gen 2 (10 Gbit/s)
2x USB-A Gen 2 (10 Gbit/s)
4x USB-A Gen 1 (5 Gbit/s)
1x RJ45 2,5 GbE (opt. 2x 10 GbE, opt. 2x 100 GbE)
1x HDMI
Mainboard: Name-Brand ATX Mainboard
Operating Temperature: 0° to +50° C
Storage Temperature: -20° to +60° C
Dimensions: 620 x 270 x 400 mm
Weight: 30 kg
Relative Humidity: 10% - 90%
Power Supply: 850 W, 100 - 240 V, 50 - 60 Hz
Power Consumption: typ. < 250 W
