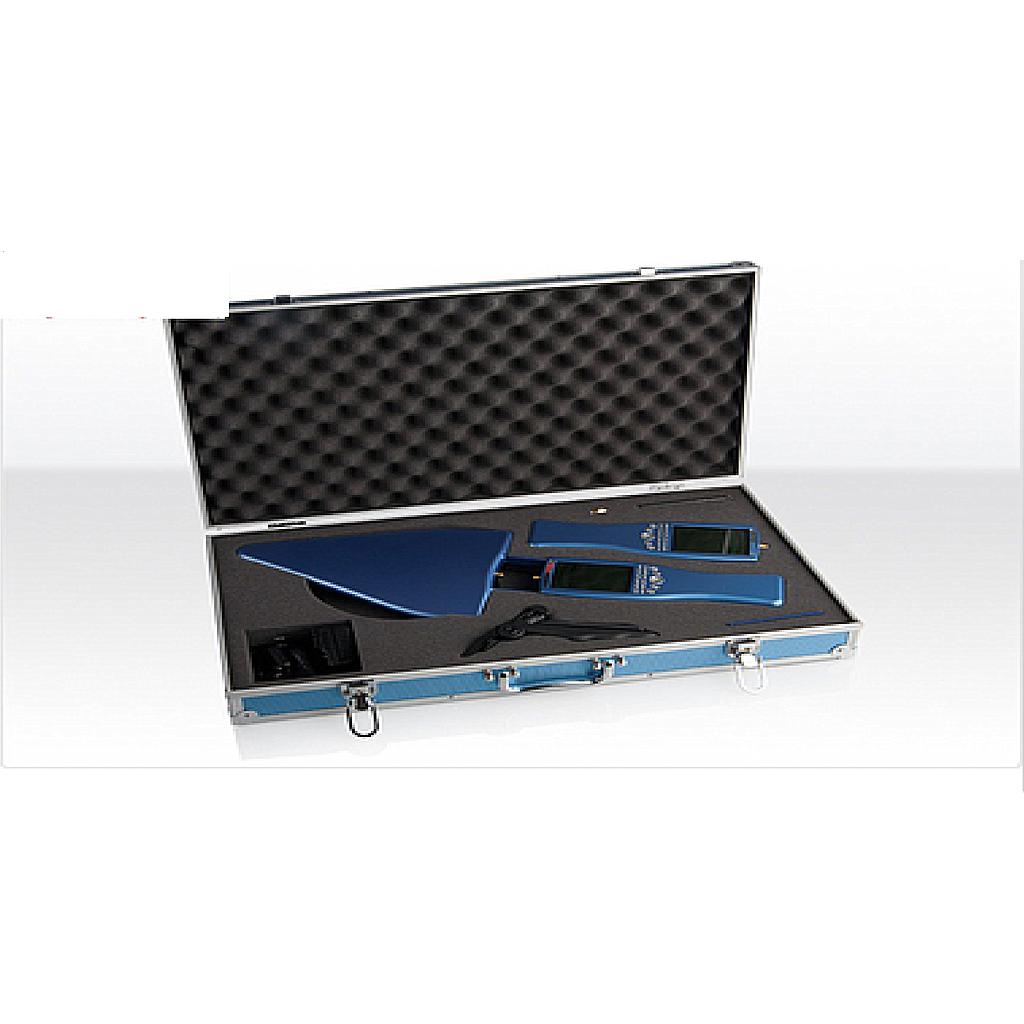

Aaronia Pro Bundle 3 EMF and RF Site Survey kit (1Mhz ~ 9.4Ghz), (1Hz ~ 1MHz)

ຜູ້ຜະລິດAARONIA(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
ModelPro Bundle 3
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ

1x SPECTRAN HF-60100 V4

  • Frequency range: 1MHz to 9,4GHz
  • DANL: -155dBm(1Hz)
  • DANL with Preamp: -170dBm(1Hz)
  • Lowest sample time: 5mS
  • Accuracy: +/- 1dB (typ.)

1x SPECTRAN NF-5030

  • Frequency range: 1Hz to 1MHz (30MHz)
  • Magnetic field (Tesla):
    1nT to 2mT (typ.) expandable up to a amount of Tesla with PBS1
  • Only with Option 005, 12bit DDC:
    1pT to 2mT (typ.) (Tesla)
  • Magnetic field (Gauss):
    10µG to 20G (typ.) (only with option 006)
  • Only with Option 009, 24bit resolution:
    10nG to 20G (typ.) (Gauss)
  • Electric field:
    0,1V/m to 20kV/m (typ.)
  • Analog Input:
    2µV to 200mV (typ.)
  • Analog Input with Option 005 DDC:
    200nV to 200mV (typ.)
  • Accuracy: 3% (typ.)

1x HyperLOG 60100

  • Frequency range: 680MHz to 10GHz

For further information please see the detailed description of each item.

Please pay attention to the frequency range of each item!

Initiates file download Datasheet (pdf)

1x SPECTRAN HF-60100 V4

  • Frequency range: 1MHz to 9,4GHz
  • DANL: -155dBm(1Hz)
  • DANL with Preamp: -170dBm(1Hz)
  • Lowest sample time: 5mS
  • Accuracy: +/- 1dB (typ.)



1x SPECTRAN NF-5030

  • Frequency range: 1Hz to 1MHz (30MHz)
  • Magnetic field (Tesla):
    1nT to 2mT (typ.) expandable up to a amount of Tesla with PBS1
  • Only with Option 005, 12bit DDC:
    1pT to 2mT (typ.) (Tesla)
  • Magnetic field (Gauss):
    10µG to 20G (typ.) (only with option 006)
  • Only with Option 009, 24bit resolution:
    10nG to 20G (typ.) (Gauss)
  • Electric field:
    0,1V/m to 20kV/m (typ.)
  • Analog Input:
    2µV to 200mV (typ.)
  • Analog Input with Option 005 DDC:
    200nV to 200mV (typ.)
  • Accuracy: 3% (typ.)



1x HyperLOG 60100

  • Frequency range: 680MHz to 10GHz





For further information please see the detailed description of each item.



Please pay attention to the frequency range of each item!
