- Frequency range: 100MHz to 4GHz
- Amplitude: -90dBm to 0dBm (typ.)
- Lowest sample time: 100mS
- Resolution (RBW): 100kHz to 50MHz
- Units: dBm, dBµV, V/m, A/m, W/m²
(dBµV/m, W/cm² etc. via PC software)
- Detectors: RMS, Pulse
- Input: 50 Ohm SMA RF-input (f)
- Accuracy: +/- 3dB (typ.)
- Interface: USB 2.0/1.1
- Dimensions (L/W/D): 250x86x27 mm
- Weight: 420gr
- Warranty: 10 years
Highlights:
- Exposure limit calculation and display according to DIN/VDE 0848
- RF spectrum display
- Data Logger (64K), expandable to 1MB (Option 001)
- Real-time remote control via USB
- Simultaneously displays frequency and signal strength
- Large, high resolution multifunction LCD
- Vector (I/Q) measurement
- AM, FM demodulation
- DECT & TimeSlot analyzer
- Real-time Peak Power Detector (option)
- Hold function
- Switchable Pulse mode

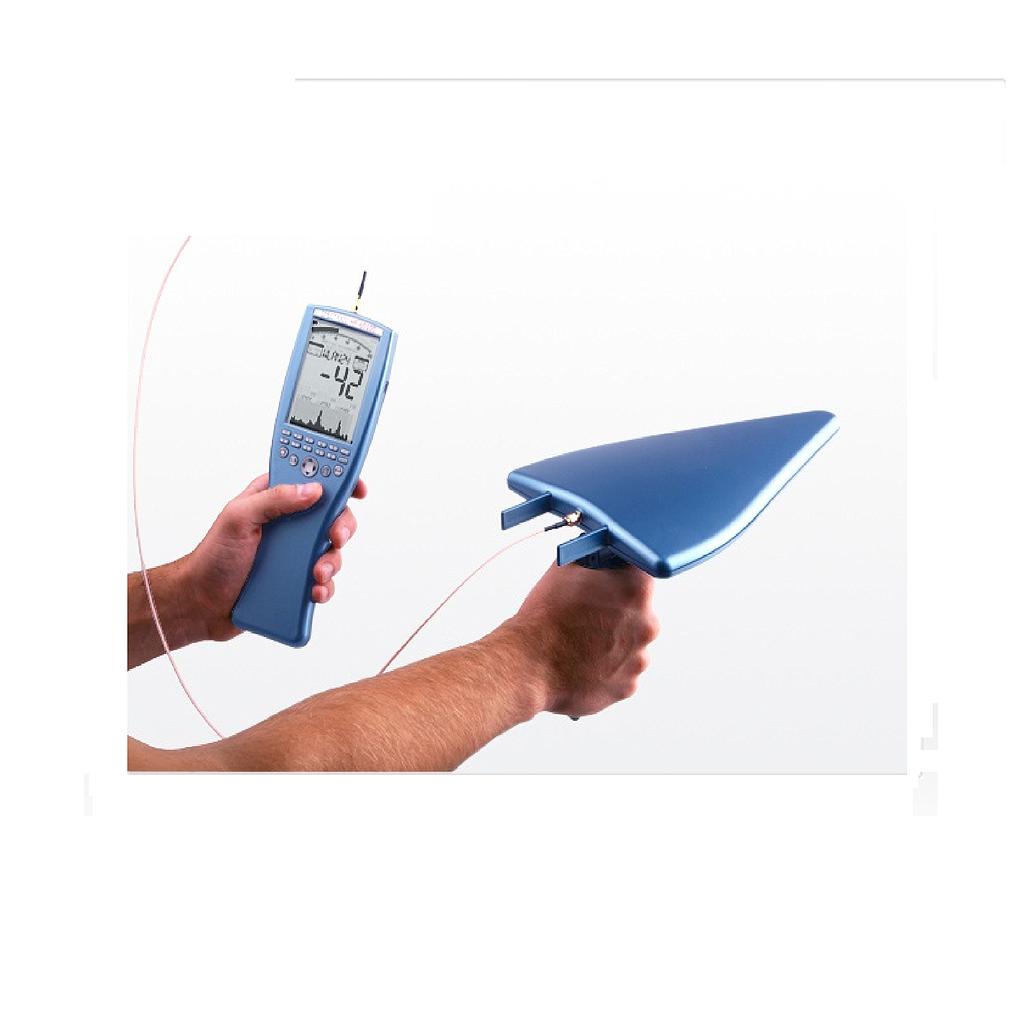

- Included EMC directional antenna HyperLOG 7040
- Free MAC OS, Linux and Windows software
Examples for possible analysis and measurements within frequency range (100MHz - 4GHz):
- Radio & TV
- Tetra/BOS
- ISM434
- LTE800
- ISM868
- GSM900
- GSM1800
- GSM1900
- DECT
- UMTS
- WLAN
- Microwave
- Bluetooth
- WiFi
- LTE2.6
- WiMAX
- etc.
