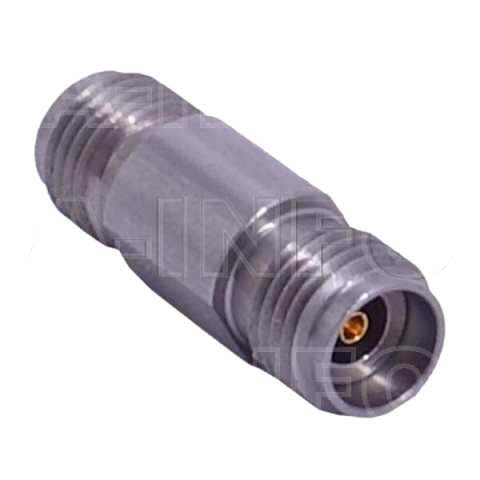

A-INFOMW HPA115-01 ຕົວແປ Coaxial (DC-50GHz, 2.4mm-Female)

Frequency, Min (GHz): 0

Frequency, Max (GHz): 50

VSWR, Max: 1.20:1

Durability (cycles): 500

Impedance, (Ohm): 50

Connector 1: 2.4mm

Connector 1 Gender: Female

Connector 1 Body Material: Passivated Stainless Steel

Connector 2: 2.4mm

Connector 2 Gender: Female

Connector 2 Body Material: Passivated Stainless Steel

Power Handling, CW, (W): 15

Operating Temp. Low (°C): -55

Operating Temp. High (°C): 165

Housing: Type 303: Stainless Steel-Polished&Passivated

Center Contact: Beryllium Copper Plated Gold (MIL-G-45204)

Insulators: PEI

Interfaces 1 Std: IEEE -STD-287-2007

Interfaces 2 Std: IEEE -STD-287-2007

Weight, (kg): 0.004
