3S Telecom 2100Pro ການວັດແທກສູງສຸດທີ່ມີຄວາມແມ່ນຍໍາສູງ OTDR (1310/1550nm, 37/35dB) | EMIN.COM.LA

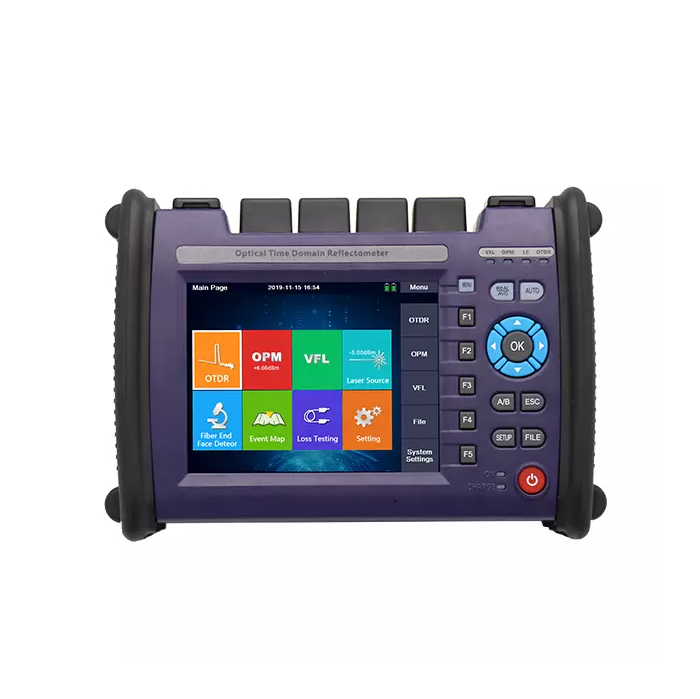

3S Telecom 2100Pro ການວັດແທກສູງສຸດທີ່ມີຄວາມແມ່ນຍໍາສູງ OTDR (1310/1550nm, 37/35dB)

Name: 3S Telecom 2100Pro ການວັດແທກສູງສຸດທີ່ມີຄວາມແມ່ນຍໍາສູງ OTDR (1310/1550nm, 37/35dB)
Brand: 3S Telecom

ຜູ້ຜະລິດ3S Telecom(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

Model2100Pro

P/NPRO2100-A37

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Testing Wavelength (MM: ±20nm, SM: ±10nm): 1310/1550

Dynamic Range (dB): 37/35

Event/Attenuation Dead-zone (m): 0.8/4

Size/Weight: 215x155x68mm / 1.1kg (Battery included)

Display: 5.6 inch touch-sensitive TFT-LCD screen with LED Backlight 800x480 TFT

Interface: 2xUSB port (Type A x 1, Type B x 1), 4 x Optical Port (1xVFL port, 1xOPM port, 2xOTDR port)

Power Supply: AC/DC adapter, 12V(dc), 100V(ac) to 240V(ac), 50~60Hz

Battery: 7.4V(dc)/2500mAh x 2pcs rechargeable lithium battery (with Air Traffic Certification)

Operating time: 12 hours1 Telcordia GR-196-CORE

Charging time: <3 hours (power off)

Power Saving: Auto Power Off- Never/1min/5min/10min/30min/60min

Data Storage: Internal memory: 16GB (about 100,000 groups of curves)

Language: Multi-language support

Environmental Conditions: Operating temperature and humidity: -10°C~+50°C, ≤95% (non-condensation), Storage temperature and humidity: -20°C~+75°C, ≤95% (non-condensation)

Accessories: Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case, Optional: SC/ST/LC adapter, Bare fiber adapter

OTDR Module

Pulse Width:

Single mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs

Multi-mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs

Distance Range:

Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km

Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km

Sampling Resolution: Minimum 5cm

Sampling Point: Maximum 256.000 points

Linearity: ≤0.05dB/dB

Distance Resolution: 0.01m

Reflectance Accuracy: Single mode: ±2dB, multi-mode: ±4dB
