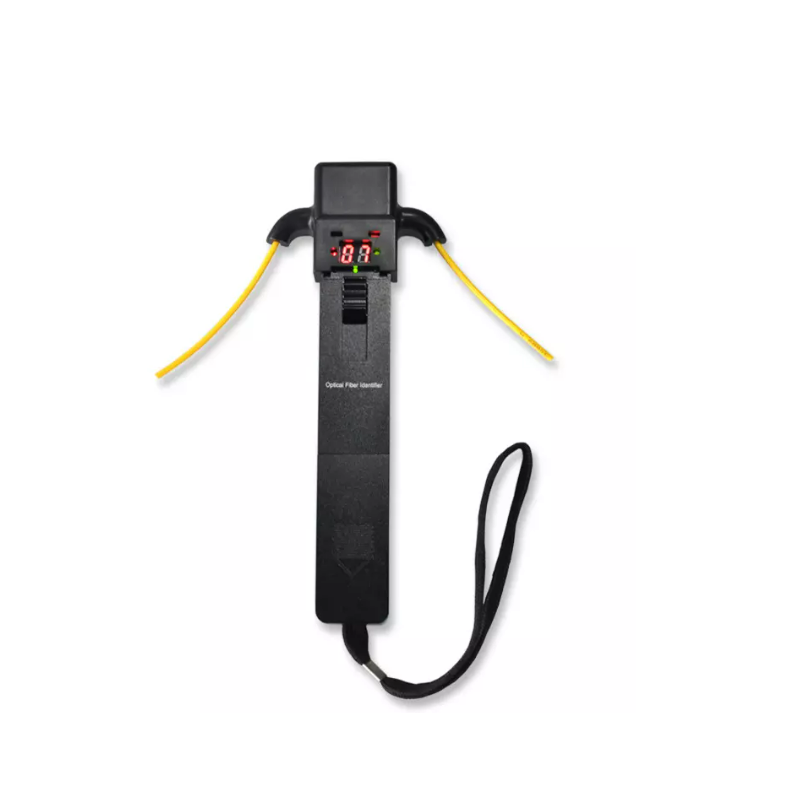

3S Telecom OFI-B ຕົວລະບຸເສັ້ນໄຍ (800 ~1700nm)

Recognizable Wavelength Range: 800 to 1700nm

Recognizable Signal Type: CW, 2kHz, 1kHz, 270Hz±5%

Detector Type: Ø1mm InGaAs 2pcs

Clamp Type:

Ø0.25 for bare fiber, Ø0.9 for Ø0.9mm cable,

Ø2.0 for Ø2.0mm cable, Ø3.0 for Ø3.0mm cable

Signal Direction: Left & right LED

Signal Direction Test Range (CW/0.9mm fiber): -46~10dBm (1310nm); -50~10dBm (1550nm)

Signal Power Test Range (CW/0.9mm fiber): -50~10dBm

Signal Frequency Display: 270Hz, 1kHz, 2kHz

Frequency Test Range (Average Value):

Ø0.9, Ø2.0, Ø3.0: -30~0dBm (270Hz, 1kHz)/ -25~0dBm (2kHz)

Ø0.25: -25~0dBm (1kHz, 2kHz)/ -20~0dBm (2kHz)

Insertion Loss (Typical Value):0.8dB (1310nm); 2.5dB (1550nm)

Alkaline Battery: 9V

Operating Temperature: -10 to +60°C

Storage Temperature: -25 to +70°C

Dimension: 196*30*27mm

Weight: 200g
