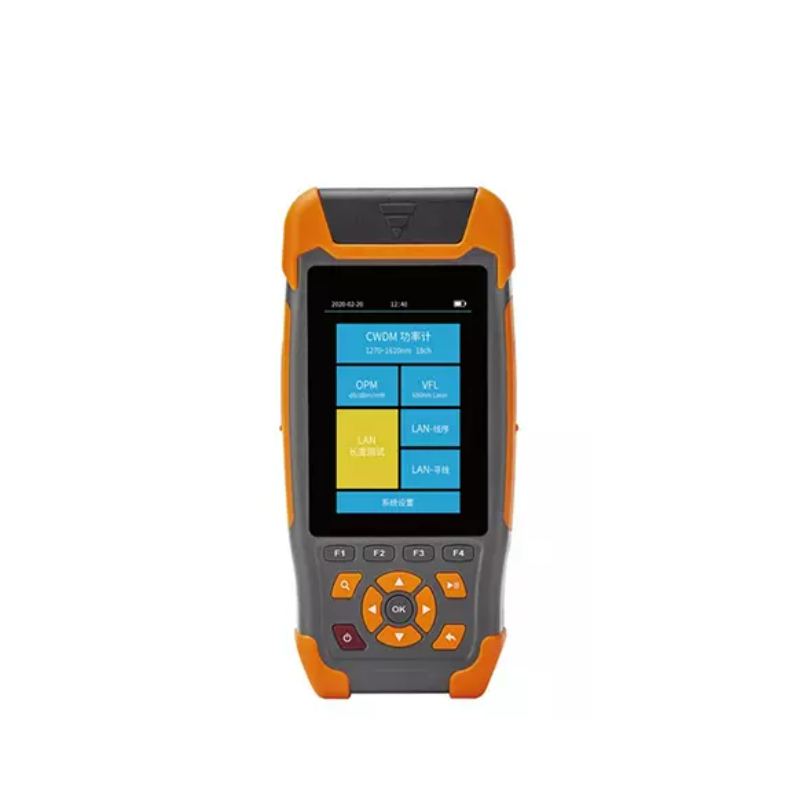

3S Telecom CWDM-18B ເຄື່ອງວັດແທກພະລັງງານ Fiber Optic (1270-1610nm, -70 -+10dBm)
CWDM Optical Power Meter
Detector Type: InGaAs
Fiber Type: SMF 9/125um
Connector: FC/UPC
Wavelength Range: 1270-1610nm
Power Range: -70 -+10dBm
Channel: 18
Channel Spacing: 20nm
Channel Band Pass: ±6.5nm
Uncertainty: ±0.5dB
Resolution: 0.01dB
Return Loss: >45dB
Unit: mW / uW / nW / dBm / dB(RFF)
Data Storage: 1,000 records
Normal Optical Power Meter
Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650nm
Power Range: -70 - +10dBm/-50 - +26dBm
Unit: mW / uW / nW / dBm / dB(RFF)
Accuracy: ±0.25dB (5%)
Resolution: 0.01dB
Visual Fault Locator
Wavelength: 650±20nm
Power: 10mW
Mode: CW/1Hz/2Hz
Connector: 2.5mm universal connector
RJ45 Cable Length
Test Distance: 300m
General Information
Display: 3.5 inch TFT LCD display, high resolution 320*480
Data Interface: Micro USB
Power Supply: Lithium battery 3.7V 4000mAh, power adapter 5V DC, 2A
Battery Working Time: >12h
Weight: 350g
Size: 173 x 82 x 37mm
Operation Temperature: -10°C～50°C
Storage Temperature: -40°C～70°C
Relative Humidity: 0 ~ 95% No Condensation
