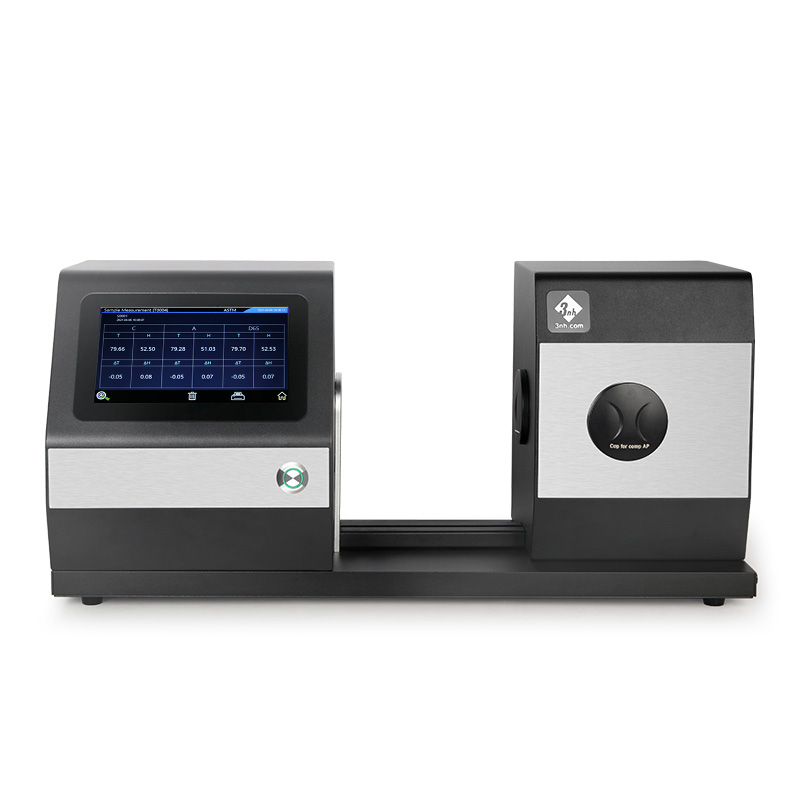

- Can measure Transmittance Rate + Haze + L*a*b*
Integrating sphere size: Φ 154 mm
Light source: 400~700 nm combined LED light source (wavelength extended is customized)
Spectrophotometric Mode: Concave grating
Sensor: 256 pixel dual array CMOS image sensor
Wavelength range: 400~700 nm (wavelength scalable customization)
Wavelength interval: 10 nm
Half bandwidth: 10 nm
Measurement Range: 0-100%
Measuring aperture: Φ20 mm/Φ15 mm/Φ8 mm/Φ4 mm (select single aperture)
Sample size: Thickness less than 105 mm
Color space: CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy
Chromatic formula: ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
Observer angle: 2°/10°
Light source: D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30
Measurement time: About 1.5s
Resolution: 0.01 unit
Dimensions: LengthxWidthxHeight = 487x260x298mm
Weight: Approx. 8.0 kg
Power supply: 24V 3A , DCpower adapter
Illuminant Life Span: > 3 million measurements in 5 years
Display: TFT True Color 7 inch, Capacitive Touchscreen
Interface: USB, Print Serial, Bluetooth
Data Storage: 5,000 samples, 20,000 samples
Language: Simplified Chinese, Traditional Chinese, English
Operating Temperature: 0~40°C (32~104°F)
Storage Temperature: - 20~50°C (-4~122°F)
Standard Accessories: Power adapter, user manual, quality management software (download), USB cable, 0% calibration box, measuring aperture
Optional Accessories: Micro printer, Test Fixture, Standard haze sheet, Footswitch
