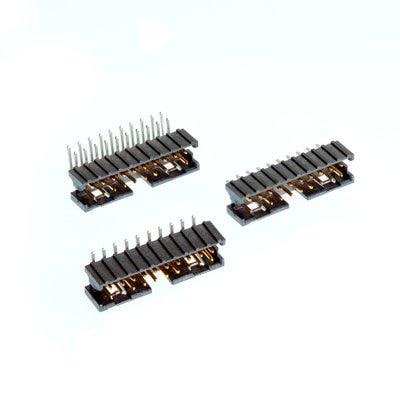

3M Electronic Solutions Division 159112-5012 Shrouded 2MMHDR/30AU/12POS RATH/CB/.112TL

Pitch: 2 mm (0.079 in)

Row Spacing: 2 mm (0.079 in)

Unit Weight: 1.056 g

Housing Color: Black

Latching Type: Friction Lock

Contact Gender: Pin (Male)

Current Rating: 4.75 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 150 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder Pin

Mating Post Length: 3.89 mm (0.153 in)

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position

Insulation Resistance: 1 GOhms

Termination Post Length: 2.84 mm (0.112 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 55 C
