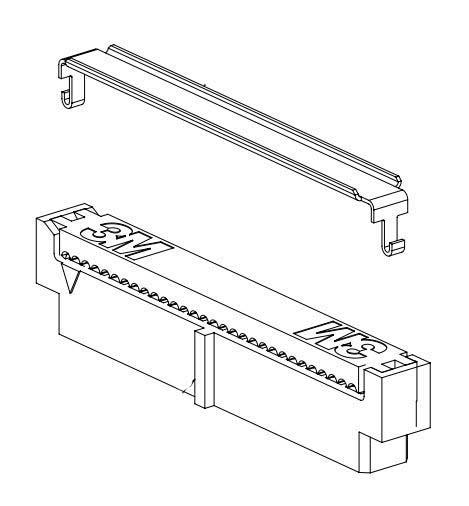

3M Electronic Solutions Division 152220-0113-GB ປຸ່ມຕິດສາຍ Wire Mount Socket WIREMT SKT 20 POS 2MM

Pitch: 2 mm (0.079 in)

Wire Gauge: 28 AWG

Row Spacing: 2 mm (0.079 in)

Unit Weight: 4.082 g

Housing Color: Gray

Latching Type: Unlatched

Contact Gender: Socket (Female)

Current Rating: 1.25 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Polyester

Termination Style: IDC

Flammability Rating: UL 94 V-0

Number of Positions: 20 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 55 C
