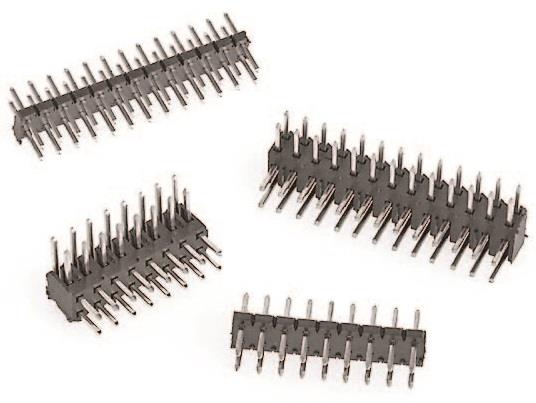

3M Electronic Solutions Division 151216-8422-RB ພິນສະຕຣິບ 16P STRT HEADER PIN STRIP 2MM

Pitch: 2 mm (0.079 in)

Row Spacing: 2 mm (0.079 in)

Housing Color: Black

Latching Type: Unlatched

Contact Gender: Pin (Male)

Current Rating: 1 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder Pin

Mating Post Length: 3.86 mm (0.152 in)

Flammability Rating: UL 94 V-0

Number of Positions: 16 Position

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 55 C
