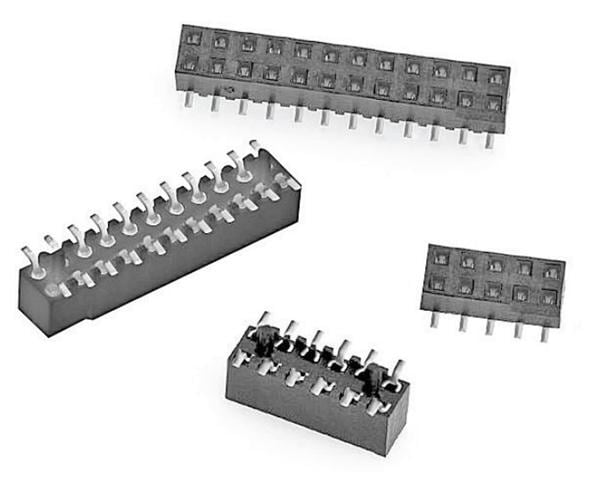

3M Electronic Solutions Division 150206-6002-RB ປຸ່ມຊ່ອງ 6 ຕຳແໜ່ງ 0.1IN.

Pitch: 2 mm (0.079 in)

Application: Wire-to-Board

Row Spacing: 2 mm (0.079 in)

Unit Weight: 465.346 mg

Housing Color: Black

Contact Gender: Socket (Female)

Current Rating: 1 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 150 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic

Termination Style: Solder Pin

Number of Positions: 6 Position

Insulation Resistance: 1 GOhms

Termination Post Length: 2.54 mm (0.1 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 55 C
