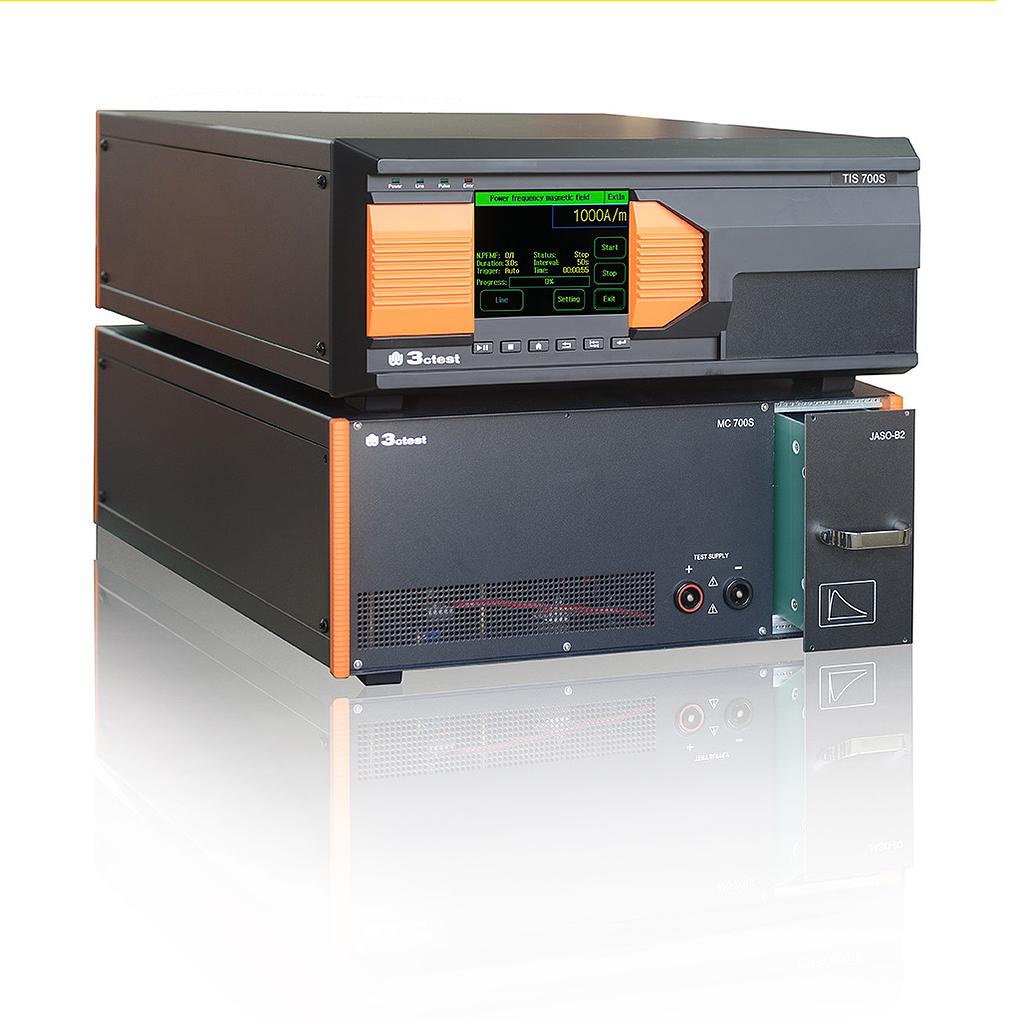

3ctest TIS 700S Automobile Micro - Pulse Generator (100~600V)
- As per NISSAN 28400 NDS03 B2:
Pulse Amplitude Vp: 200 - 400 V
Rise Time Tr（Vp): ≤1 μs
Step Interval: 3 - 99 s
Polarity: +/ -
No. of Burst: 1 - 9999
Weight: 1 kg
Dimension: 95 x 170 x 180 mm
- NISSAN 28400 NDS07 C8:
Pulse Amplitude Vp: 200 - 400 V
Rise Time Tr（Vp): ≤1 μs
Step Interval: 3 - 99 s
Polarity: +/ -
No. of Burst: 1 - 9999
Weight: 1 kg
Dimension: 95 x 170 x 180 mm
- NISSAN 28400 NDS07 C50:
Pulse Amplitude Vp: 200 - 400 V
Rise Time Tr（Vp):≤1 μs
Step Interval: 3 - 99 s
Polarity: +/ -
No. of Burst: 1 - 9999
Weight: 1 kg
Dimension: 95 x 170 x 180 mm
- NISSAN 28400 NDS07 C300:
Pulse Amplitude Vp: 200 - 400 V
Rise Time Tr（Vp）: ≤1 μs
Step Interval: 3 - 99 s
Polarity: +/ -
No. of Burst: 1 - 9999
Weight: 1 kg
Dimension: 95 x 170 x 180 mm
- SAEJ1455 Self - inductive Pulse:
Pulse Amplitude Vp: 200 - 600 V
Rise Time Tr（Vp): ≤1 μs
Time Constant: 1000 μs
Step Interval: 1 - 99 s
Polarity: +/ -
No. of Burst: 1 - 9999
Weight: 1 kg
Dimension: 95 x 170 x 180 mm
- SAEJ1455 Mutual Induct:
Pulse Amplitude Vp: 200 - 600 V
Rise Time Tr（Vp): ≤1 μs
Time Constant: 15 μs
Step Interval: 1 - 99 s
Polarity: +/ -
No. of Burst: 1 - 9999
Weight: 1 kg
Dimension: 95 x 170 x 180 mm
- JASO - D001 A2:
Pulse Amplitude Vp: 100 - 300 V
Rise Time Tr（Vp): ≤1 μs
Step Interval: 3 - 99 s
Polarity: +
No. of Burst: 1 - 9999
Weight: 1 kg
Dimension: 95 x 170 x 180 mm
- JASO - D001 B2:
Pulse Amplitude Vp: 200 - 400 V
Rise Time Tr（Vp):≤1 μs
Step Interval: 3 - 99 s
Polarity: +/ -
No. of Burst: 1 - 9999
Weight: 1 kg
Dimension: 95 x 170 x 180 mm
- JASO - D001 D2:
Pulse Amplitude Vp: 100 - 300 V
Rise Time Tr（Vp):≤1 μs
Step Interval: 3 - 99 s
Polarity: +
No. of Burst: 1 - 9999
Weight: 1 kg
Dimension: 95 x 170 x 180 mm
- General Parameters:
Power Supply: AC 110/220 V, 10%, 45 - 65 Hz
Environmental Temperature: 15 - 35℃
Relative Temperature: 35% - 85%RH (condensation free)
Dimension: 450 x600 x177 mm (4U cabinet x 2)
Weight: About 20 kg
