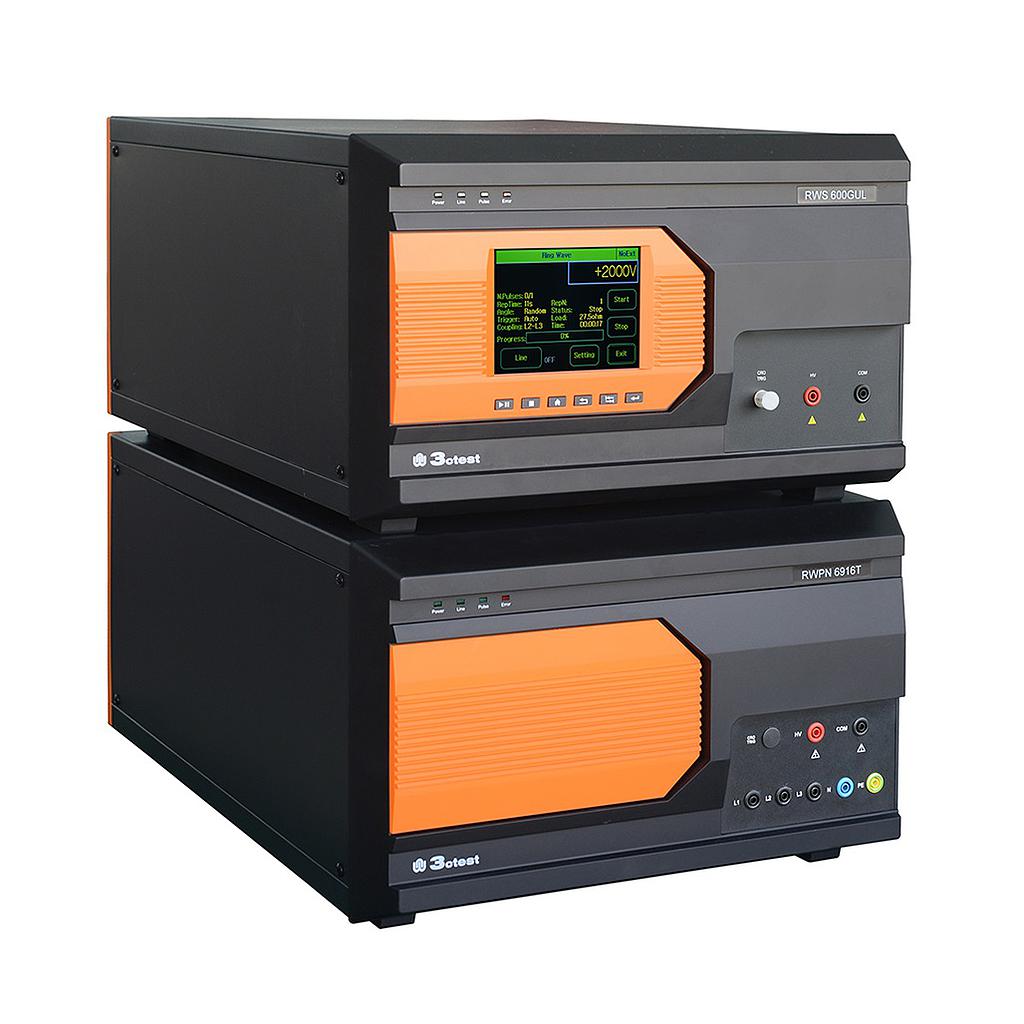

3ctest RWPN 6916TUL ເຄືອຂ່າຍ Coupling/Decoupling ສໍາລັບ Ring Wave Generator (6 kV; 5~30Ω)
ຜູ້ຜະລິດ: 3ctest Model: RWPN 6916TUL - ຕິດຕໍ່ພົວພັນ
- Technical Parameters:
Test Voltage: Max 6 kV (the actual output depends on the set value of the generator)
Phase Sync.: Any L-L, L-PE at any phase angles between L1, L2, L3, N, PE
Coupling Paths: Any two lines between L1, L2, L3, N, PE
Coupling Path Switching Method: Automatic
Coupling Capacitor: 3 μF
Coupling Resistor: 5Ω, 12Ω, 27.5Ω, 30Ω (use standard types or user-defined, depending on the internal impedance of the generator)
Coupling Attenuation: <2 dB
Residual Pulse Voltage At The EUT Injection Terminal: <15% of test voltage or rated peak voltage of the CDN
- General Parameters:
Operating Power Supply: AC 110 V / 220 V ±10%, 50/60 Hz ±5% (Default setting as AC 220 V, 50 Hz for Mainland China)
Fuse: 6 A
Max Power: 200 W
Auxiliary Port: D-sub 25p
Operating Status Indicators: Front panel LED
Grounding Method: Grounding strap
Dimension: 19”, 6 U
Weight : Approx 30 kg
Operating Temp.: 15℃ - 35℃
Operating Humidity: 45% - 75%
Operating Air Pressure: 86 kPa – 106 kPa
