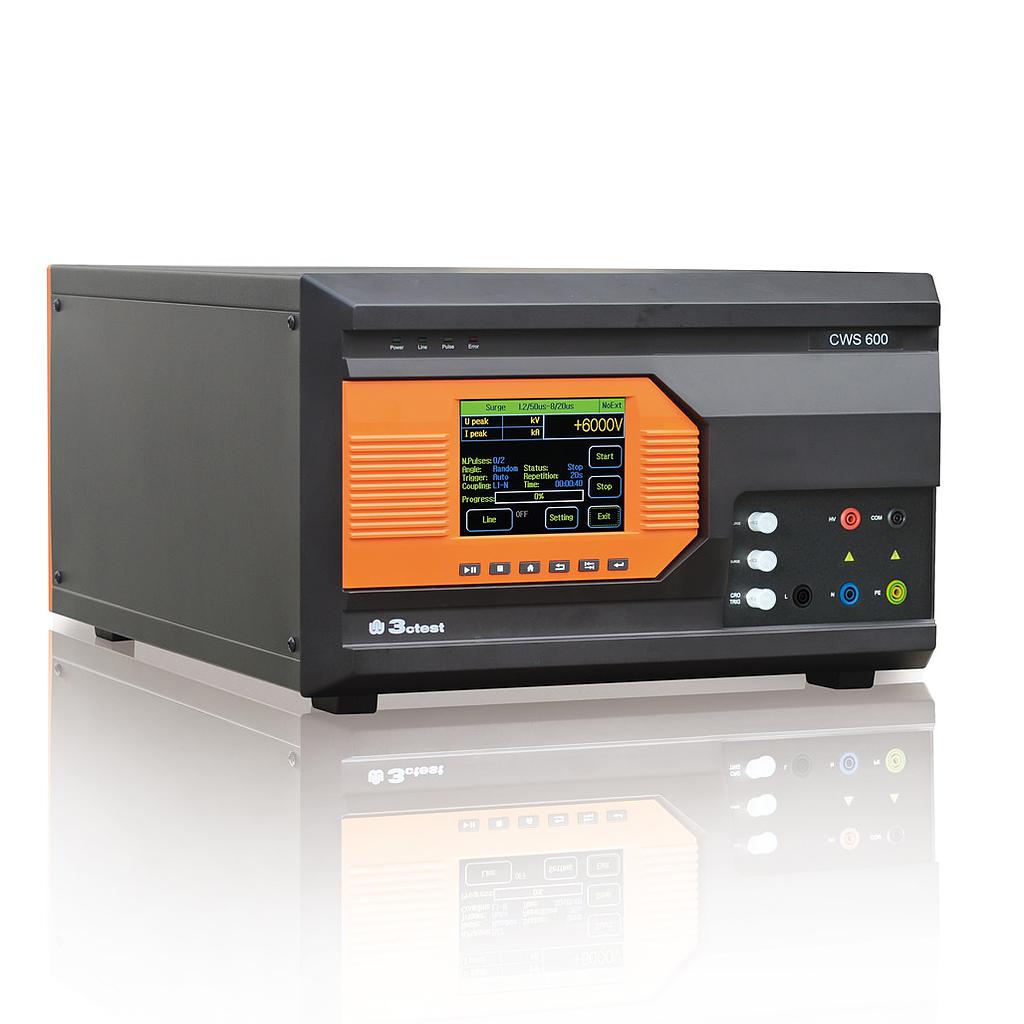

3ctest CWS 600T Combination Wave Lightning Surge Simulator (0.3-6 kV; 10/700 μs; 5/320 μs)
- Technical Parameters:
Output Voltage: 0.3-6 kV
Output Waveform: 10/700 μs; 5/320 μs
Output Impedance: 15 Ω
Cabinet Dimension: 19 Inches 6U
- General Parameters:
Synchronization: 0°-360°，1° step setup or random mode
Polarity: +/-/alternative
Trigger Mode: AUTO/MANUAL/EXTERNAL SIGNAL TRIGGER
Impulse Cycle: 5-99 s（The shortest cycle depends on testing current）
Testing number: 1-999
Failure Detection: The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument.
Working Status Indication: LED indication and LCD display on front panel
EUT Mains Voltage Injection: 4mm2 banana plug cable
Detection Output Mode: Standard 1 m Coaxial Wire
Display Screen: 5.7 Inches TFT color touch screen
Working Mains: AC 110 V/220 V,±10%，50 Hz /60 Hz（AC 220 V in mainland China）
Fuse: 6 A
Maximum Power Consumption: 200 W
User Storage Space: Infinite (PC)
Communication Mode: Ethernet, RJ45
Cabinet Dimension（W*H*D): 19 Inches/6 U/8 U
Weight: Approx. 30 Kg
Ambient Temperature: 15 ℃–35 ℃
Relative Humidity: 45%-75%
Atmospheric Pressure: 86 kPa～106 kPa
