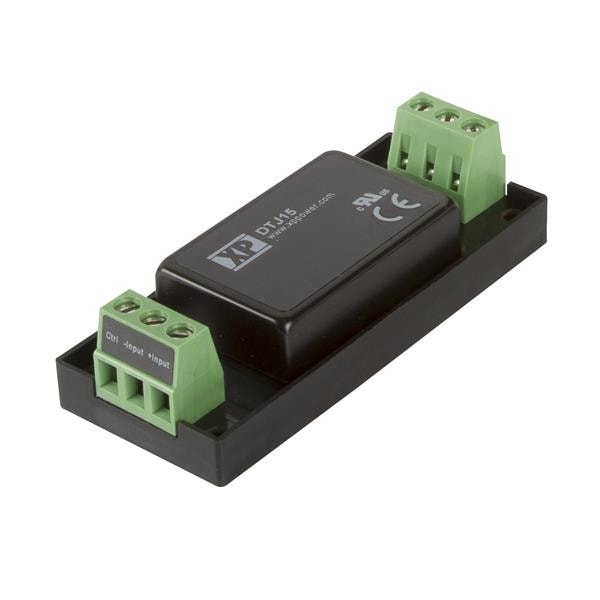

XP Power DTJ1548D15 Isolated DC-DC, Chassis Mount, 4:1 input
ຜູ້ຜະລິດ: XP Power Model: DTJ1548D15 - ຕິດຕໍ່ພົວພັນ
Width: 31.4 mm
Height: 19.4 mm
Length: 76.2 mm
Industry: Industrial
Dimensions: 76.2 mm x 31.4 mm x 19.4 mm
Unit Weight: 45 g
Output Power: 15 W
REACH - SVHC: Details
Input Voltage: 18 V to 75 V
Mounting Style: Chassis
Isolation Voltage: 3 kV
Number of Outputs: 2 Output
Input Voltage - Max: 75 V
Input Voltage - Min: 18 V
Input Voltage, Nominal: 48 V
Output Current-Channel 1: 500 mA
Output Current-Channel 2: 500 mA
Output Voltage-Channel 1: 15 V
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
