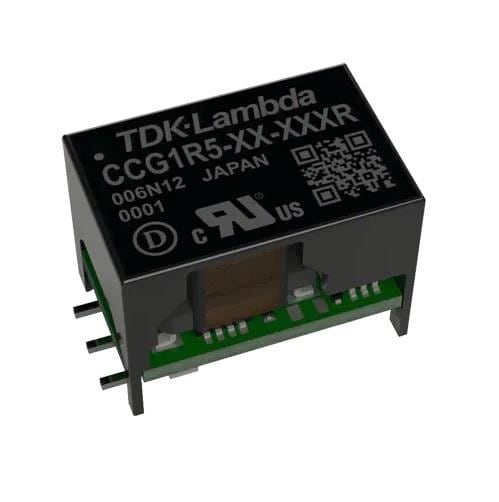

TDK-Lambda CCG1R5-48-15DR Isolated Input 24/48VDC, Output +/-15V 0.05A, 1.5W SMD
ຜູ້ຜະລິດ: TDK-Lambda Model: CCG1R5-48-15DR - ຕິດຕໍ່ພົວພັນ
Width: 10.4 mm
Height: 11.5 mm
Length: 15.7 mm
Industry: Industrial
Output Power: 1.5 W
REACH - SVHC: Details
Input Voltage: 18 V to 76 V
Mounting Style: SMD/SMT
Isolation Voltage: 1.5 kV
Number of Outputs: 2 Output
Input Voltage - Max: 76 V
Input Voltage - Min: 18 V
Input Voltage, Nominal: 48 V
Output Current-Channel 2: 50 mA
Output Voltage-Channel 1: 15 V
Output Voltage-Channel 2: - 15 V
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
