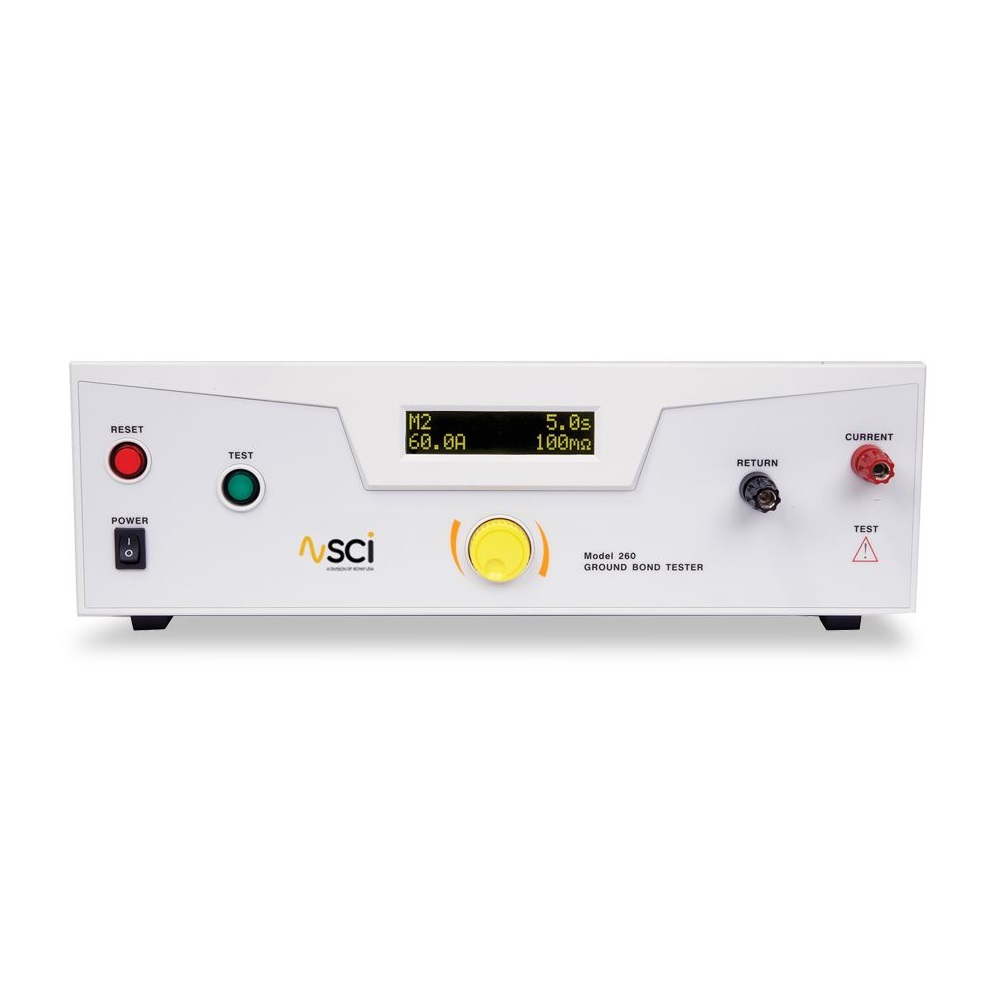

SCI 266 AC Ground Bond Tester (3-60A AC)

INPUT

- Voltage: 100 - 240 VAC ± 10% Full Range

- Frequency: 50/60 Hz ± 5%

- Fuse: 12A / 250 VAC Slow-Blow

GROUND BOND TEST MODE

- Output rating: 3.0 - 60.0 AAC

- Voltage setting: 0-5.00 kVAC; 0-6.00 kVDC

  + Resolution: 0.1A

  + Accuracy: ± (2% of setting + 0.1A)

  + Voltage 12 VAC (fixed)

- Output Frequency: 50/60 Hz user selectable

  + Accuracy: ± 0.1%

- Resistance limit settings: 0 - 150 mΩ for 30.1 - 60.0 A

                                           0 - 200 mΩ for 15.1 - 30.0 A

                                           0 - 600 mΩ for 3.0 - 15.0 A

  + Resolution: 1 mΩ

  + Accuracy: ± (2% of setting + 2 mΩ)

- Offset limit settings: 0 - 100 mΩ

  + Resolution: 1 mΩ

  + Accuracy: ± (2% of setting + 2 mΩ)

- Dwell timer: 0, 0.5 - 240.0 sec, (0=continuous), 0.1 sec/step

- Ramp timer: 0.1 sec fixed

- Measurement current: 0.0 - 60.0 AAC

  + Resolution: 0.1 A

  + Accuracy: ± (3% of reading + 0.1 A)

- Ohmmeter: 0 - 600 mΩ

  + Resolution: 1 mΩ

  + Accuracy: ± (3% of reading + 3 mΩ) for 3 - 5.9 A,

                      ± (2% of reading + 2 counts) for 6 - 60A

GENERAL SPECIFICATIONS

- Memories: 5

- Remote I/O:

  + Input: Test, Reset, Interlock

  + Output: Pass, Fail, Test-in-Process

- Voltage limit settings: 0.00 - 9.00 VAC

  + Resolution: 0.01 V

  + Accuracy: ± (2% of setting + 0.02 V)

- Offset limit settings: 0.00 - 6.00 VAC

  + Resolution: 0.01 V

  + Accuracy: ± (2% of setting + 0.02 V)

- Safety mark: CE/cTUVus

- Dimensions (WxHxD): 16.93" x 5.20" x 11.81" (430 x 132 x 300 mm)

- Weight: 20.25 lbs. (9 Kg)
