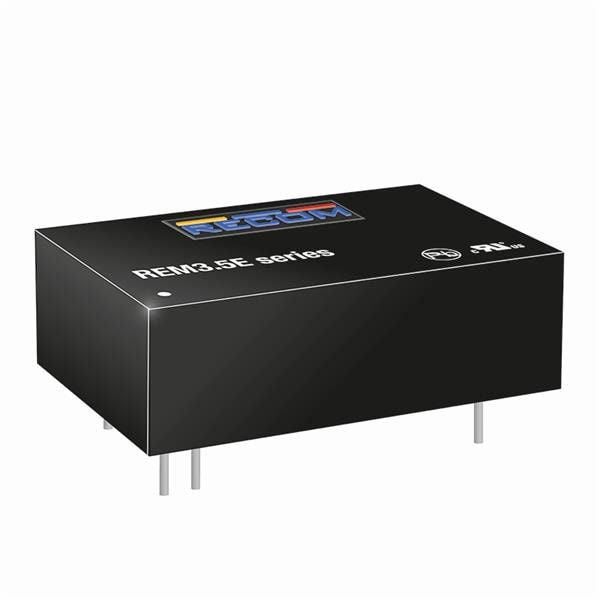

RECOM Power REM3.5E-0509D/R6/A/SMD Isolated 3.5W 4.5-9Vin +/-09Vout 194mA
ຜູ້ຜະລິດ: RECOM Power Model: REM3.5E-0509D/R6/A/SMD - ຕິດຕໍ່ພົວພັນ
Width: 20.3 mm
Height: 10.2 mm
Length: 31.8 mm
Industry: Medical, Industrial
Compliance: ANSI; CB; CSA; IEC; REACH; RoHS; UL
Efficiency: 80%
Unit Weight: 14 g
Output Power: 3.5 W
Input Voltage: 4.5 V to 9 V
Mounting Style: SMD/SMT
Isolation Voltage: 6 kV
Number of Outputs: 2 Output
Input Voltage - Max: 9 V
Input Voltage - Min: 4.5 V
Input Voltage, Nominal: 5 V
Output Current-Channel 1: 194 mA
Output Current-Channel 2: 194 mA
Output Voltage-Channel 1: 9 V
Output Voltage-Channel 2: - 9 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
